Model Specifications: 7.6kW / 11kW / 22kW

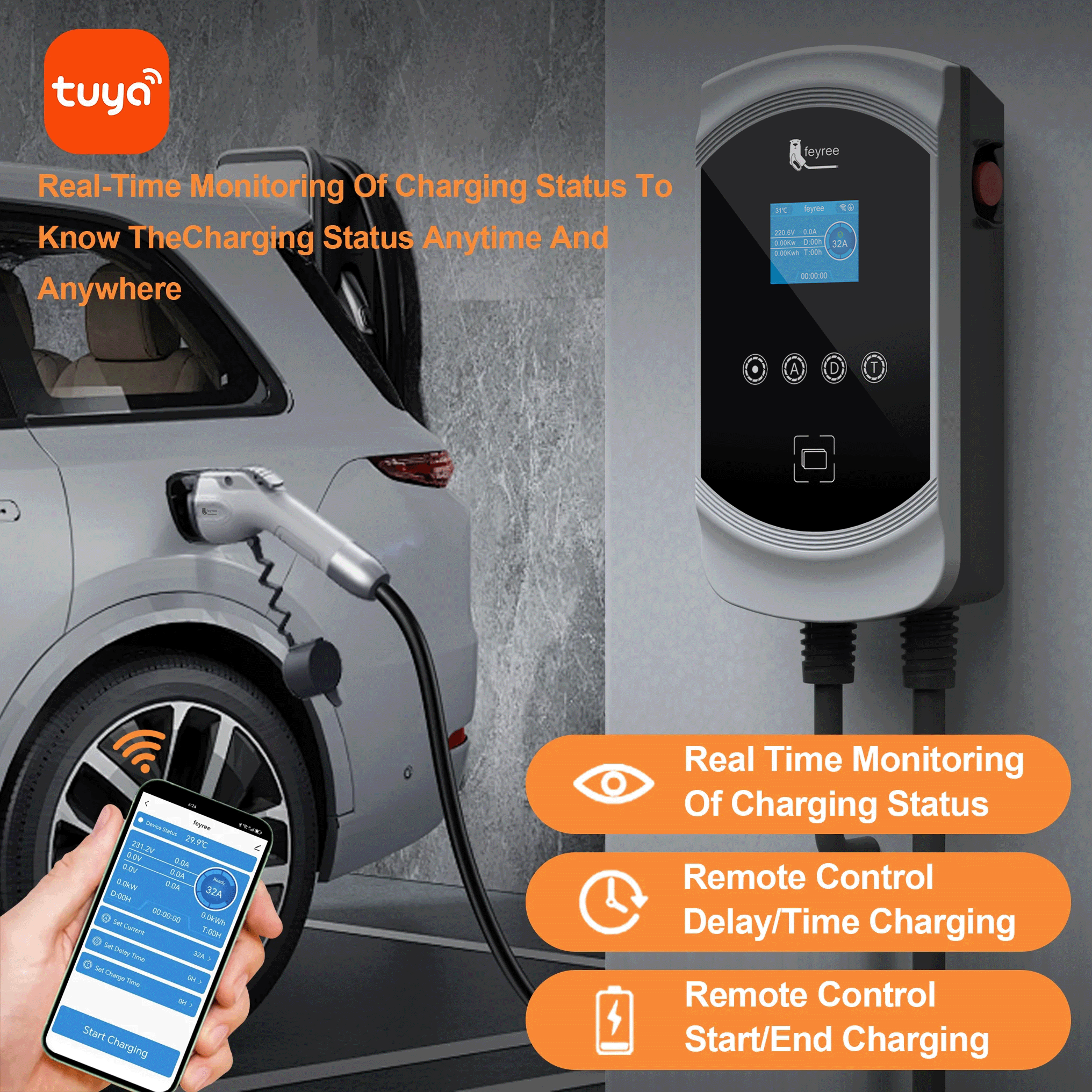

Remote Control via Tuya App: Smart Charging at Your Fingertips
Control your EV charging station from anywhere using the free Tuya Smart app. Monitor charging status in real-time, adjust power settings, schedule charging sessions, and review historical charging data — all from your smartphone.
- Free mobile app available for both iOS (App Store) and Android (Google Play).
- Real-time monitoring of charging current, voltage, power, and temperature.
- Remote start and stop charging sessions with a single tap.
- Adjust charging current from 8A to 32A directly from your phone.

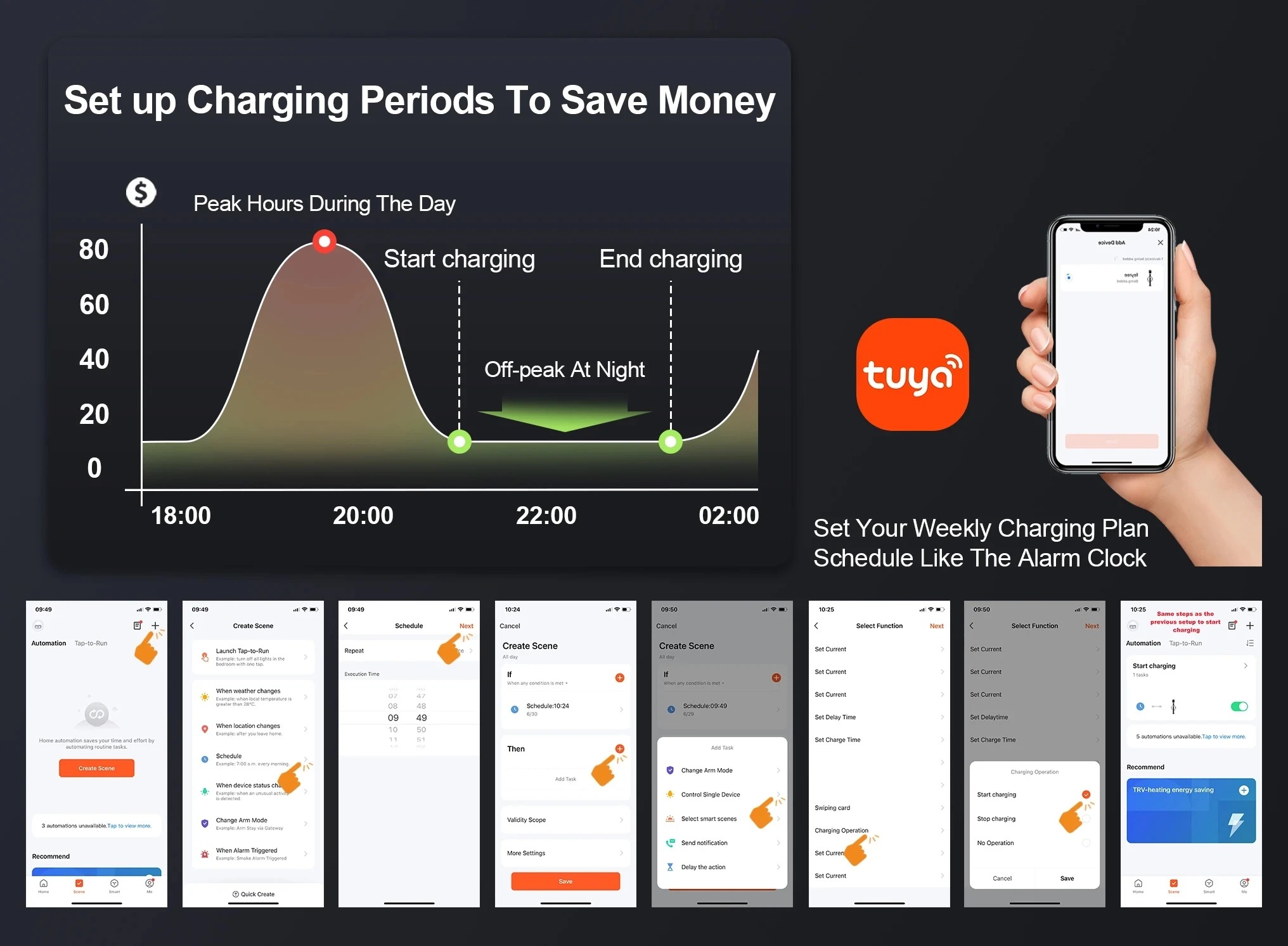

Smart Scheduling: Charge During Off-Peak Hours to Save Money
Take advantage of lower electricity rates by scheduling your EV to charge automatically during off-peak hours. Set up weekly charging plans that repeat automatically, ensuring your car is always ready when you need it while minimizing your electricity costs.
- Schedule charging to start and stop at specific times each day.
- Create different schedules for weekdays and weekends.
- Automatically charge during the cheapest electricity rate periods.
- Set recurring weekly schedules that run on autopilot.
- Override scheduled charging anytime with manual controls.

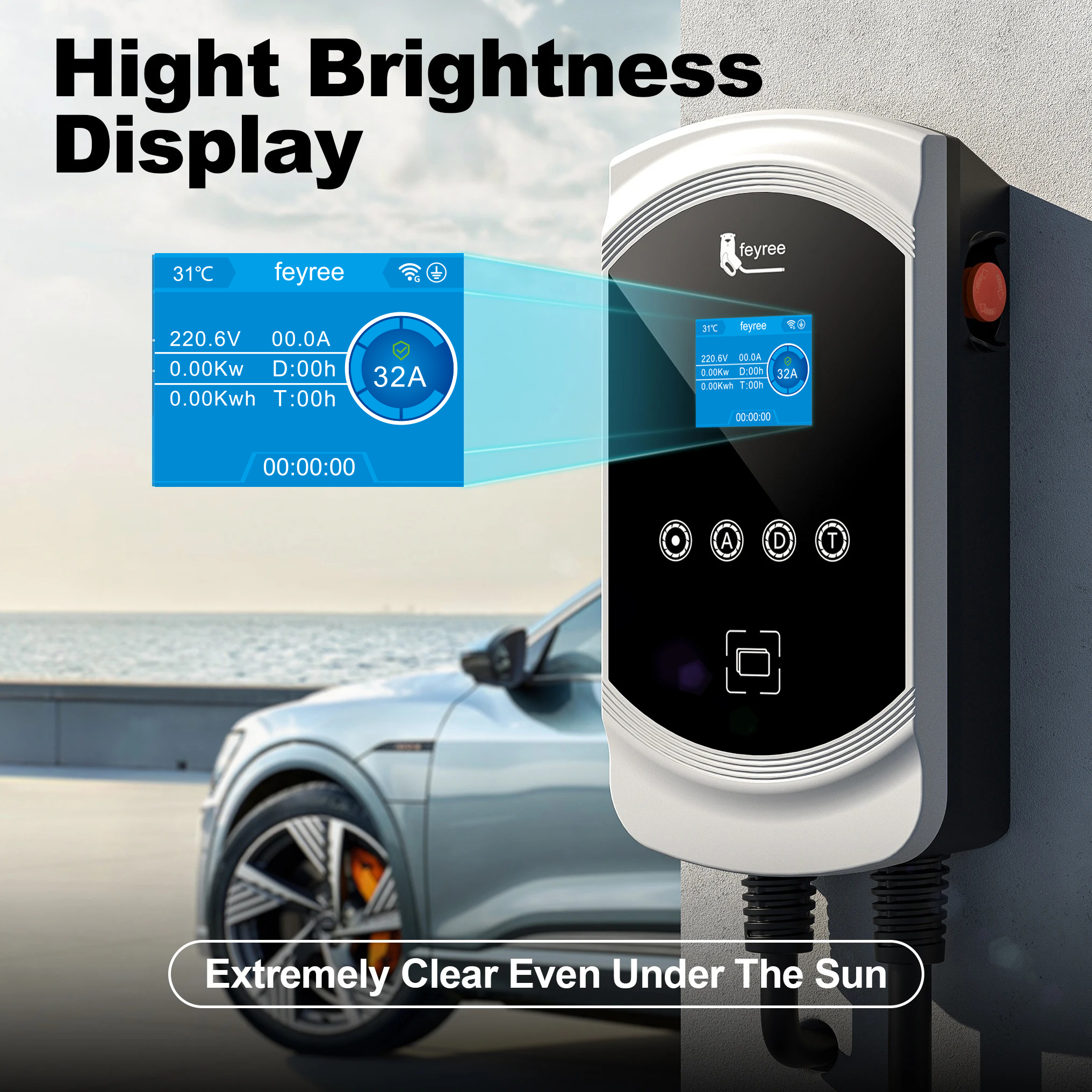

Large LCD Screen: Clear Real-Time Charging Data Display
The high-brightness LCD screen provides instant visibility of all critical charging parameters at a glance — no need to check your phone. Monitor charging current, voltage, power output, temperature, and WiFi connection status directly on the unit.
- High-contrast LCD display readable in direct sunlight.
- Real-time display of charging voltage (V), current (A), and power (kW).
- Live temperature monitoring to ensure safe operation.
- WiFi connection status indicator for app connectivity.
- Charging session timer and energy consumption (kWh) tracking.

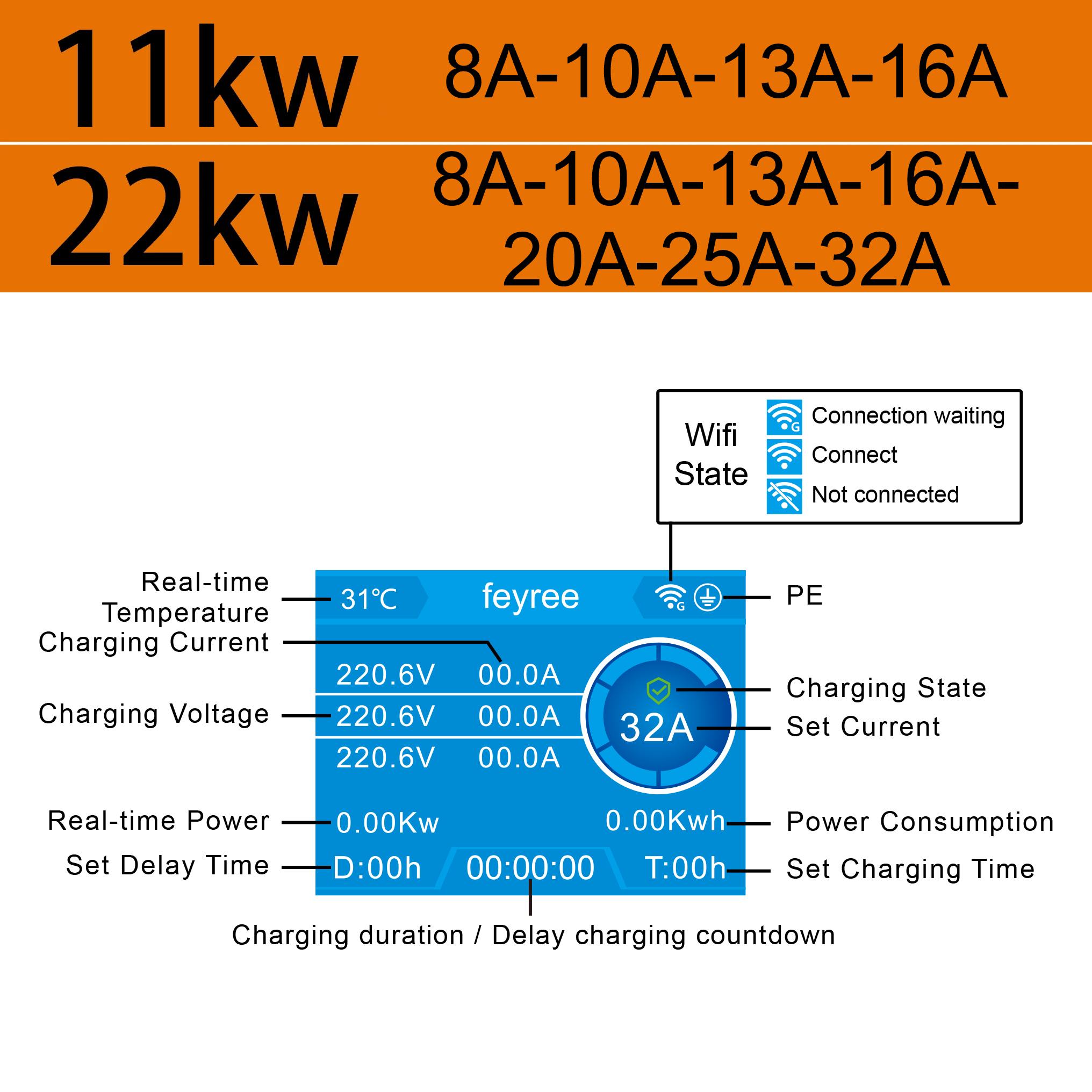

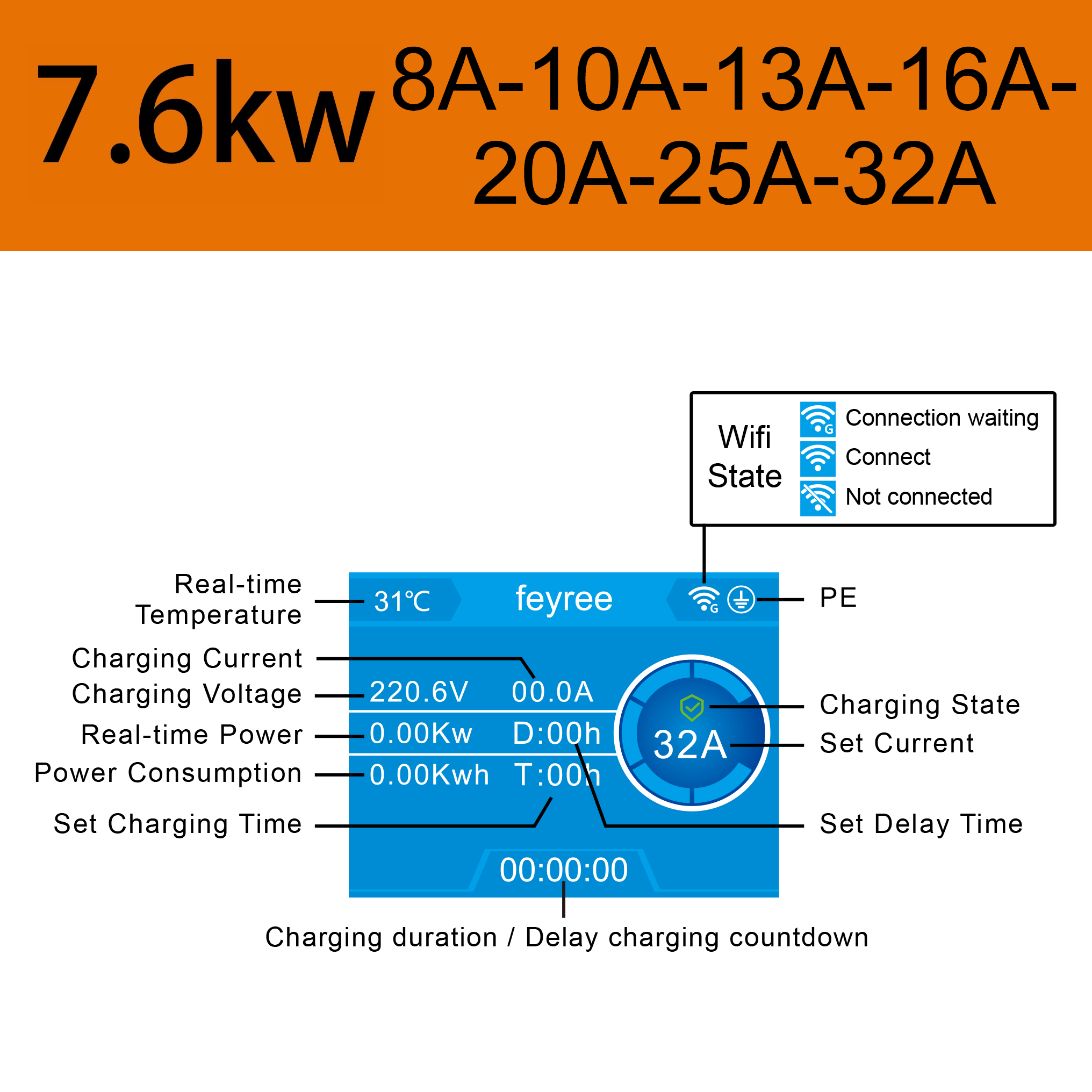

LCD Interface: Real-Time Monitoring at a Glance

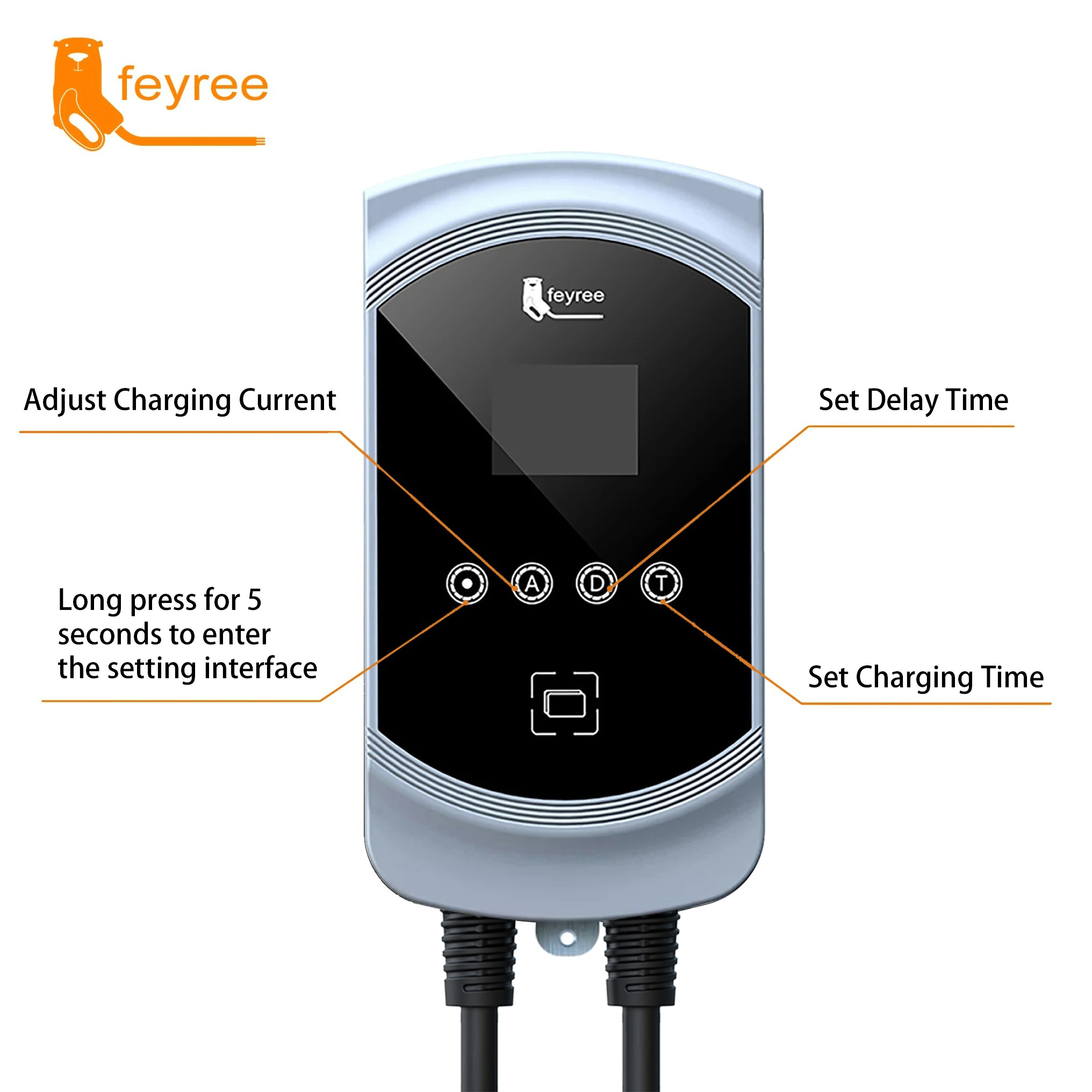

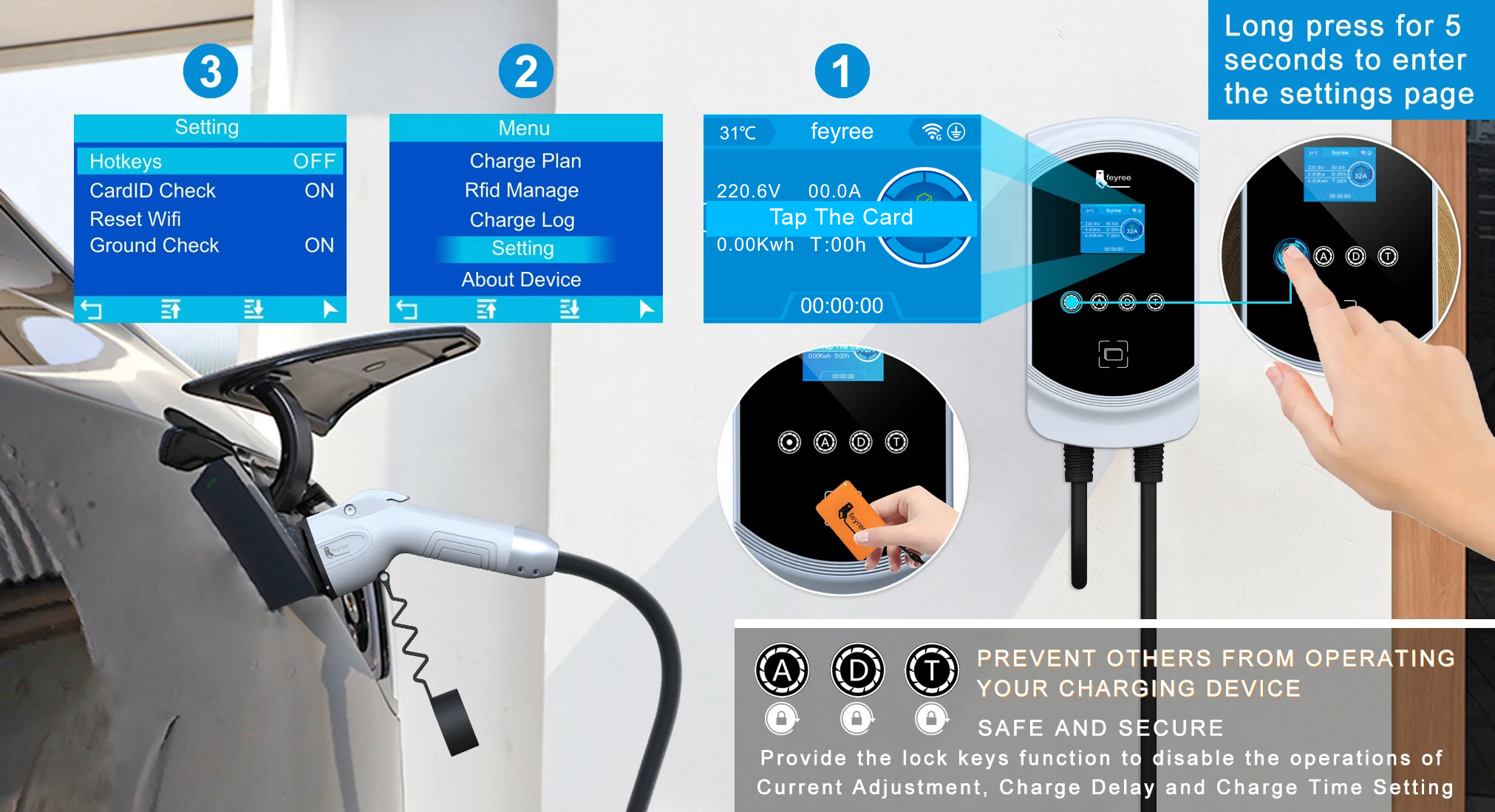

Intuitive Touch Controls: Easy Manual Operation
The front panel features clearly labeled touch-sensitive buttons for adjusting charging parameters without needing the app. Control charging current, set delay timers, and configure charging duration directly on the device.
- Touch-sensitive buttons for intuitive operation.
- Current adjustment button: Set charging amperage from 8A to 32A.
- Delay timer button: Schedule charging to start at a later time.
- Time setting button: Configure maximum charging duration.
- All settings saved automatically and retained after power outages.

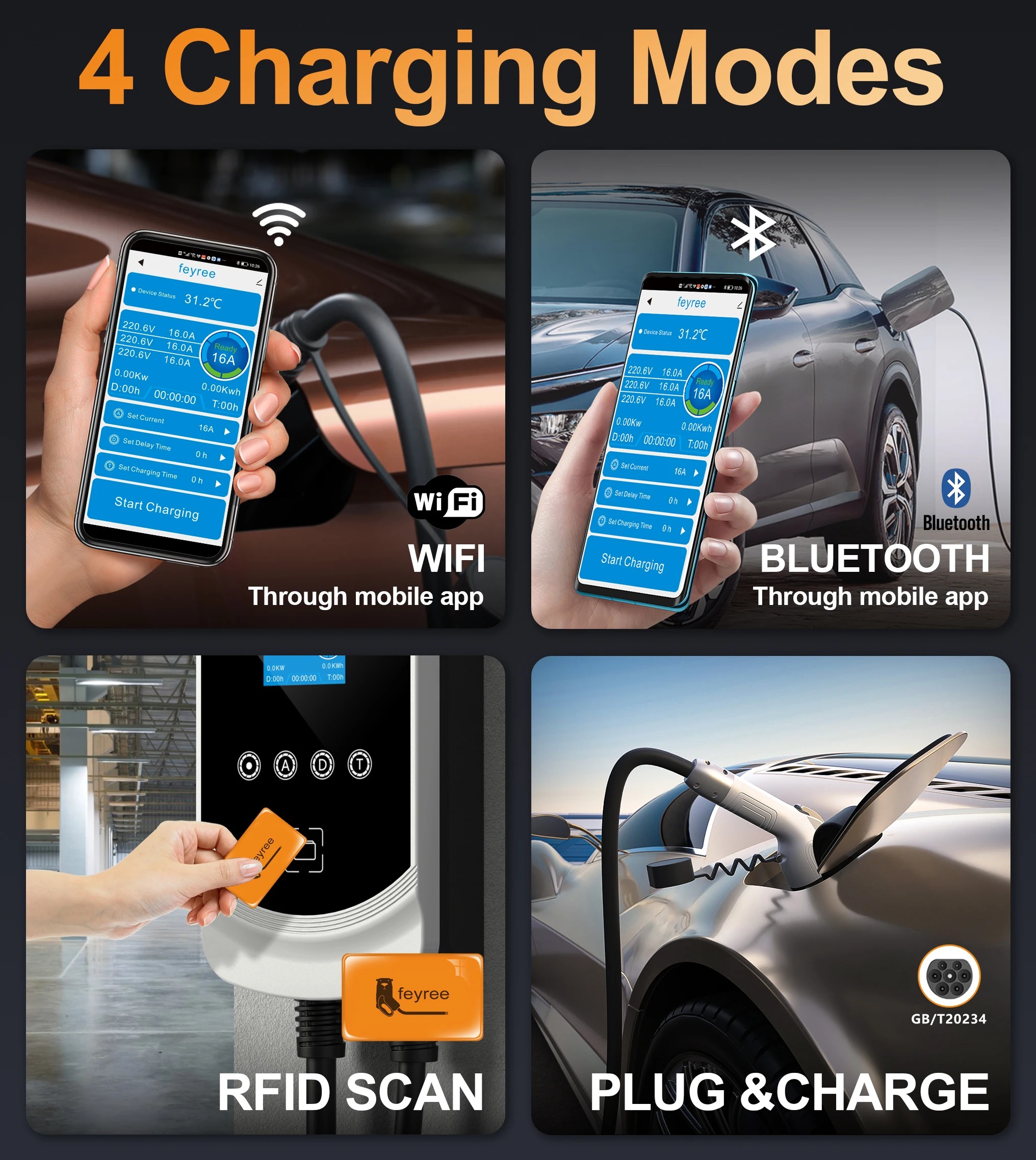

4 Flexible Charging Modes: Multiple Ways to Start Charging
Choose from four convenient charging modes to suit different situations and preferences. Whether you prefer app control, RFID card authentication, or simple plug-and-play convenience, this charger adapts to your needs.
- WiFi App Control
- Connect via WiFi and control all charging functions remotely through the Tuya Smart app.
- Bluetooth App Control
- Use Bluetooth connection for local control even without WiFi network availability.
- RFID Card Authentication
- Tap the included RFID card to authorize and start charging — perfect for shared or commercial installations.
- Plug & Charge
- Simply plug in the cable and charging begins automatically — no app or card needed.

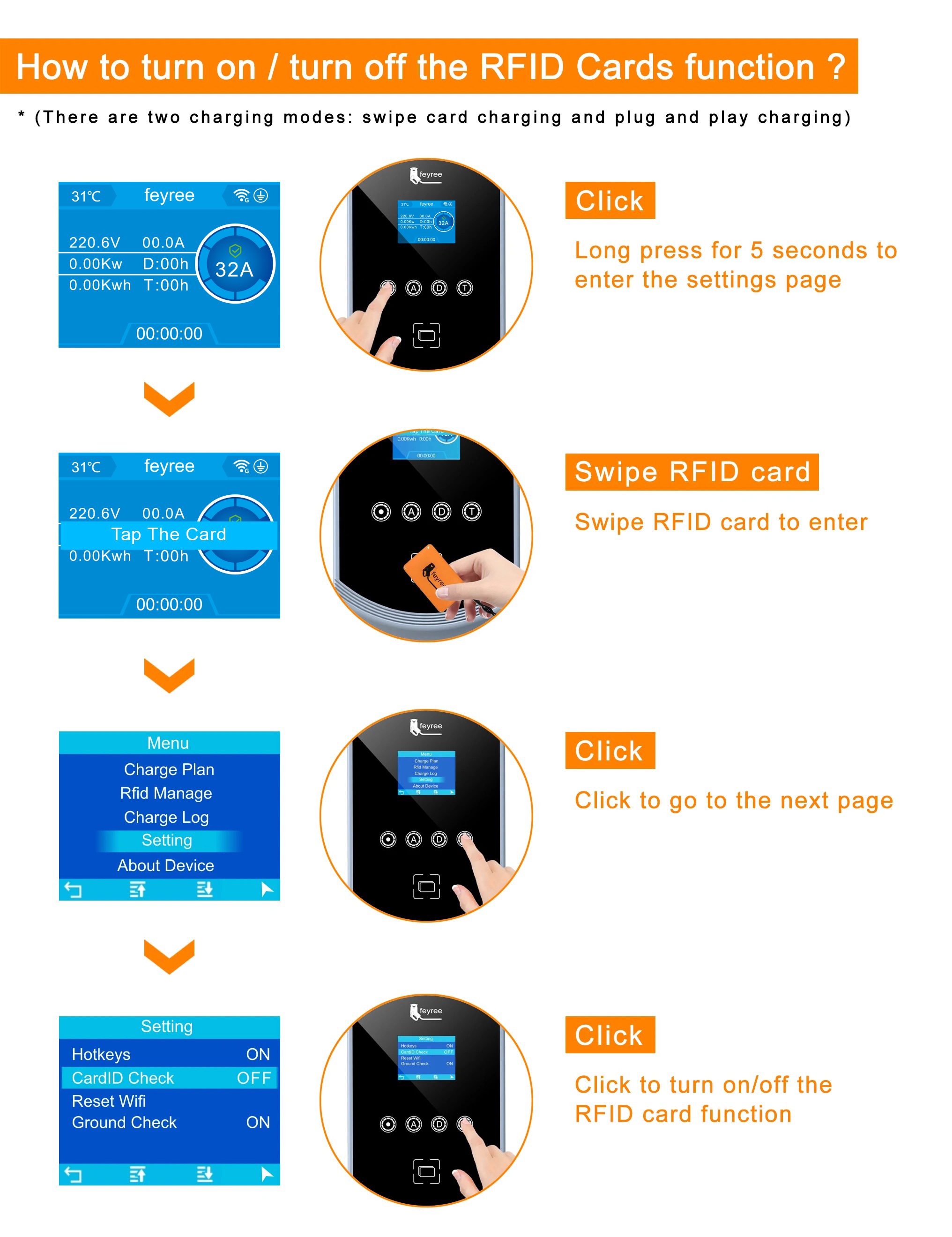

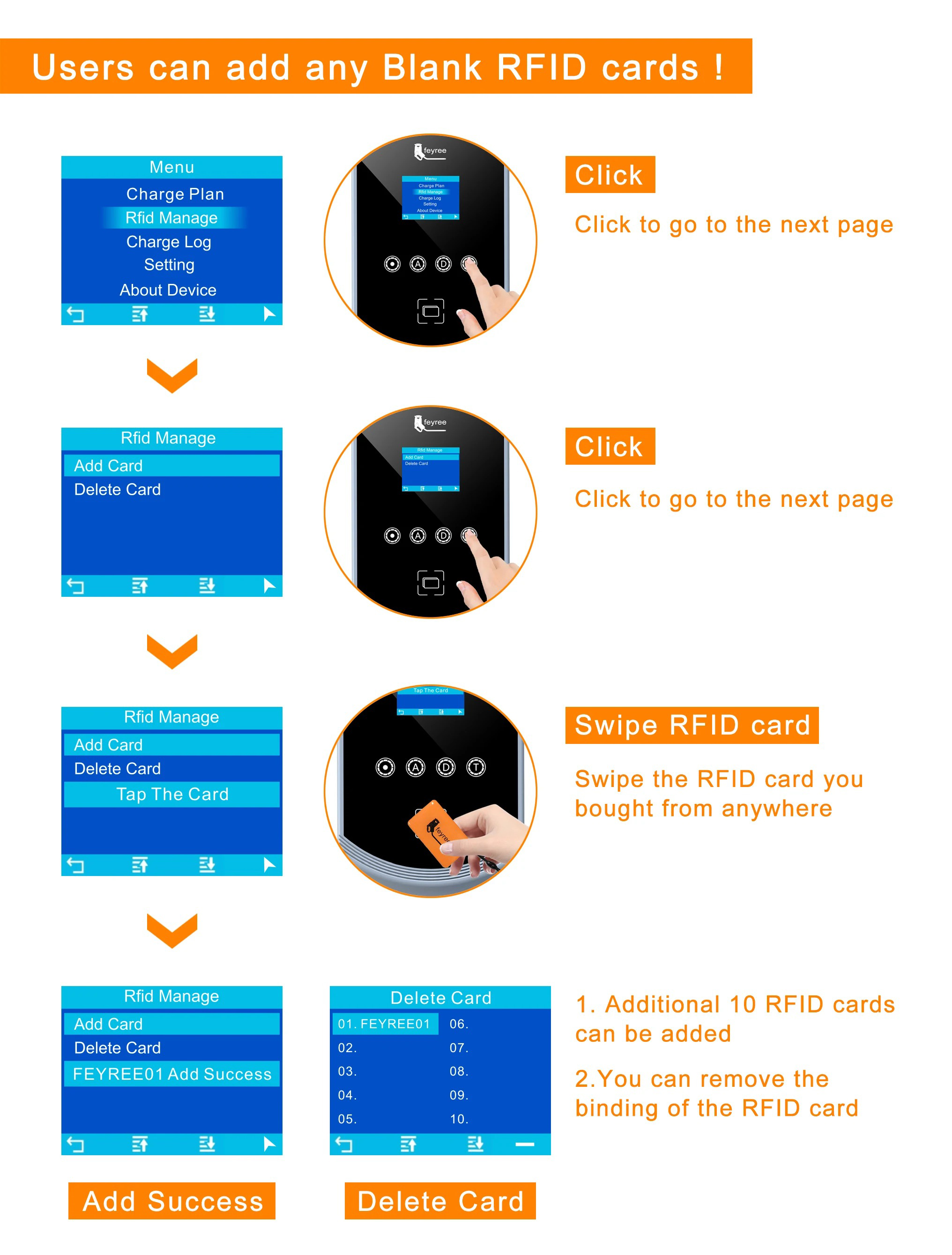

RFID Card Management: Secure Access Control
8-Layer Comprehensive Safety Protection: Charging with Total Peace of Mind
Multiple layers of advanced safety protection monitor and safeguard every charging session. Automatic detection and response systems protect against electrical faults, ensuring safe operation under all conditions.
- Leakage Protection: Automatic restart recovery after leakage current detection.
- Over/Under Voltage Protection: Self-checking recovery when voltage returns to safe range.
- Lightning Protection: Surge protection circuitry guards against lightning strikes.
- Overcurrent Protection: Automatically limits current to prevent circuit overload.

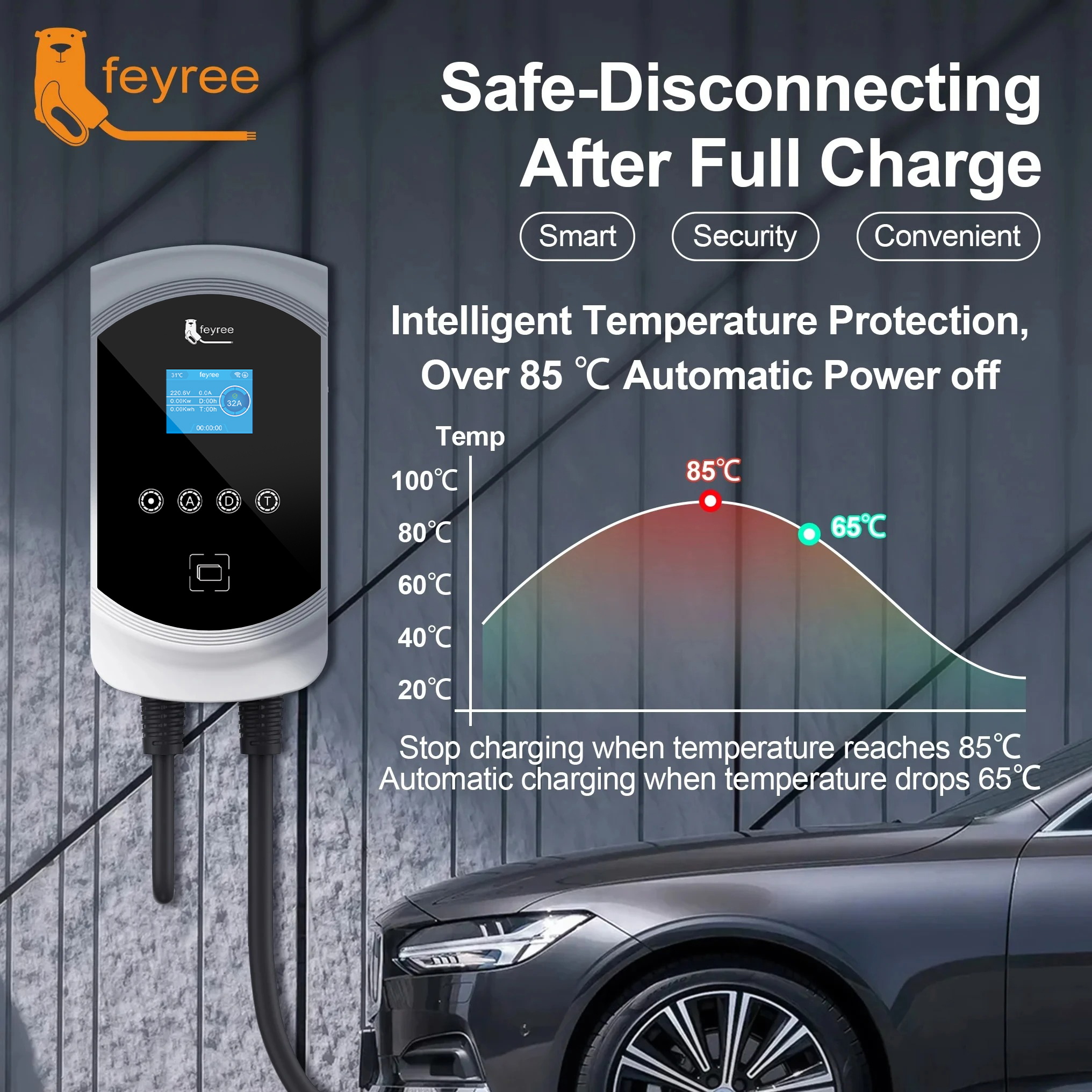

- Overheat Protection: Temperature monitoring with automatic shutdown above 85°C.
- Ground Protection: Continuous ground fault monitoring for electrical safety.
- Short Circuit Protection: Instant cutoff in case of short circuit detection.
- Emergency Stop Button: Manual override button for immediate power cutoff.
Advanced Temperature Management

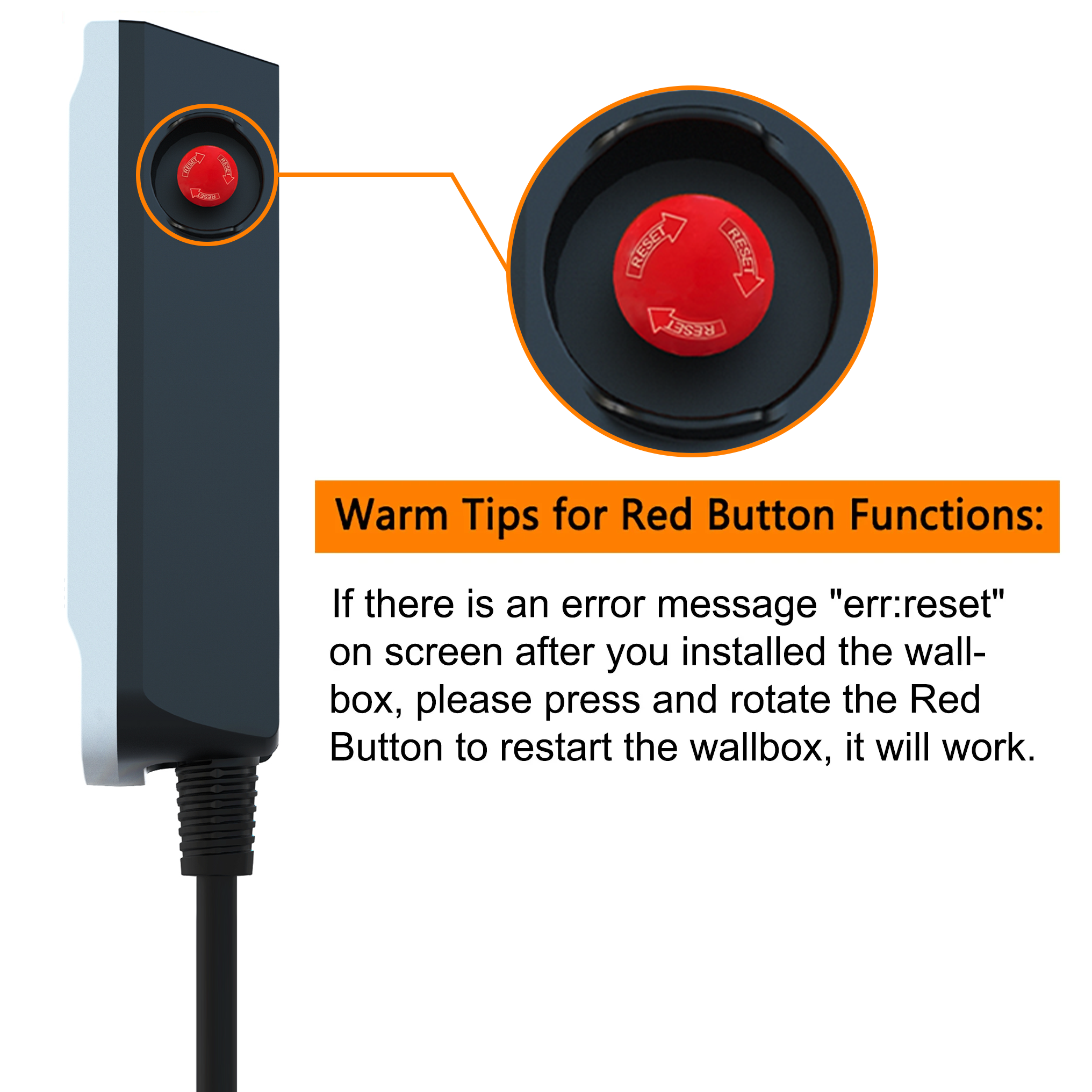

Emergency Stop Button: Instant Manual Override
A prominent red emergency stop button on the side of the wallbox provides instant manual control to halt charging in any emergency situation. Simply press the button to immediately cut power, then press again to reset and resume normal operation.
- Large, easy-to-reach emergency stop button on the side panel.
- Instant power cutoff without unplugging the cable.
- Press once to stop — press again to reset and restart.
- Mechanical override independent of electronic controls.
- Complies with safety standards for emergency shutdown equipment.

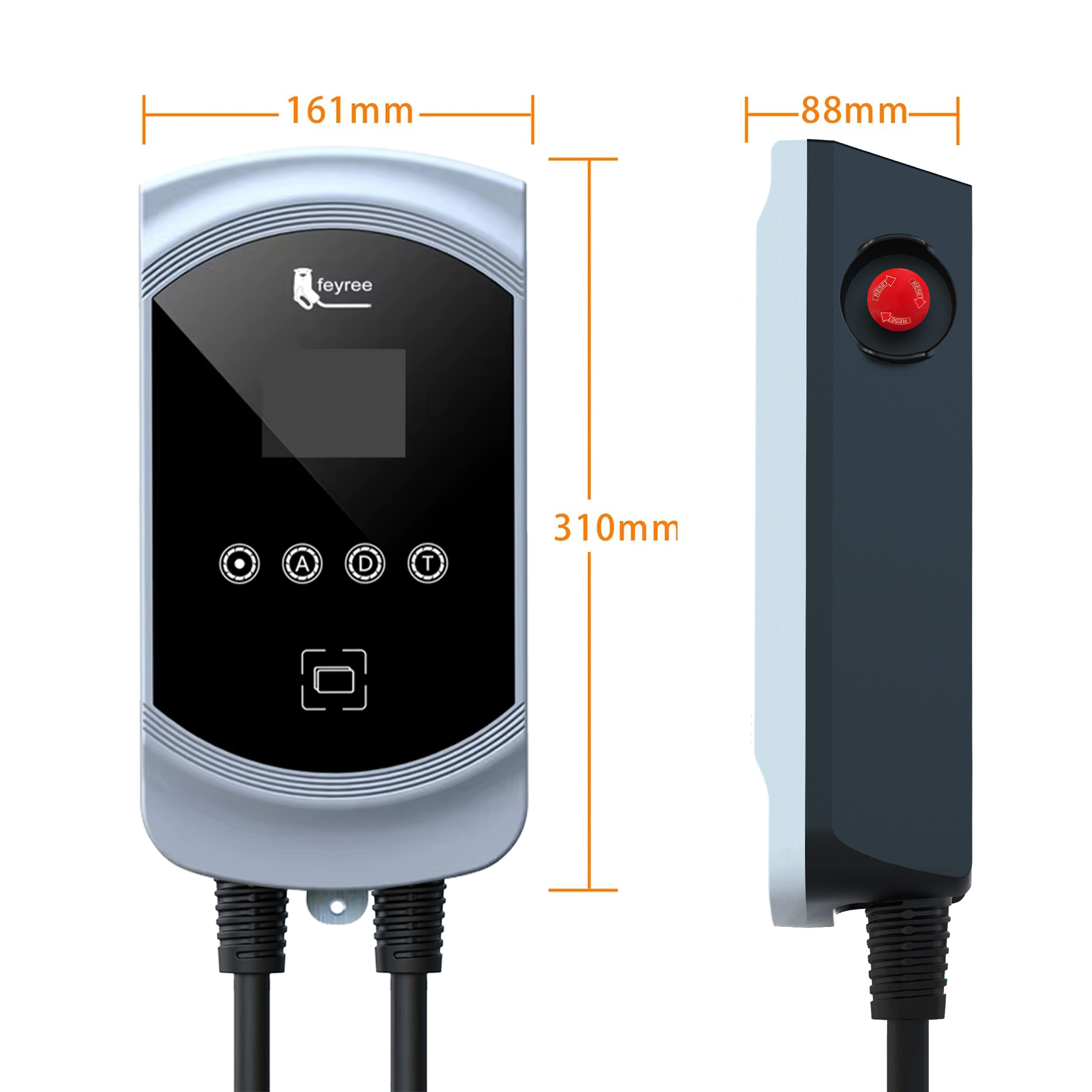

Compact Dimensions: Space-Saving Wall-Mount Design
With dimensions of just 310mm × 161mm × 88mm, the Feyree wallbox charger fits easily in any garage or parking space without taking up valuable room. The slim profile and integrated cable management keep your charging area neat and organized.
- Compact size: 310mm (H) × 161mm (W) × 88mm (D).
- Wall-mount bracket included for secure installation.
- Integrated cable hook keeps the 5-meter cable tidy when not in use.
- Suitable for indoor and outdoor installation with IP66 weatherproof rating.

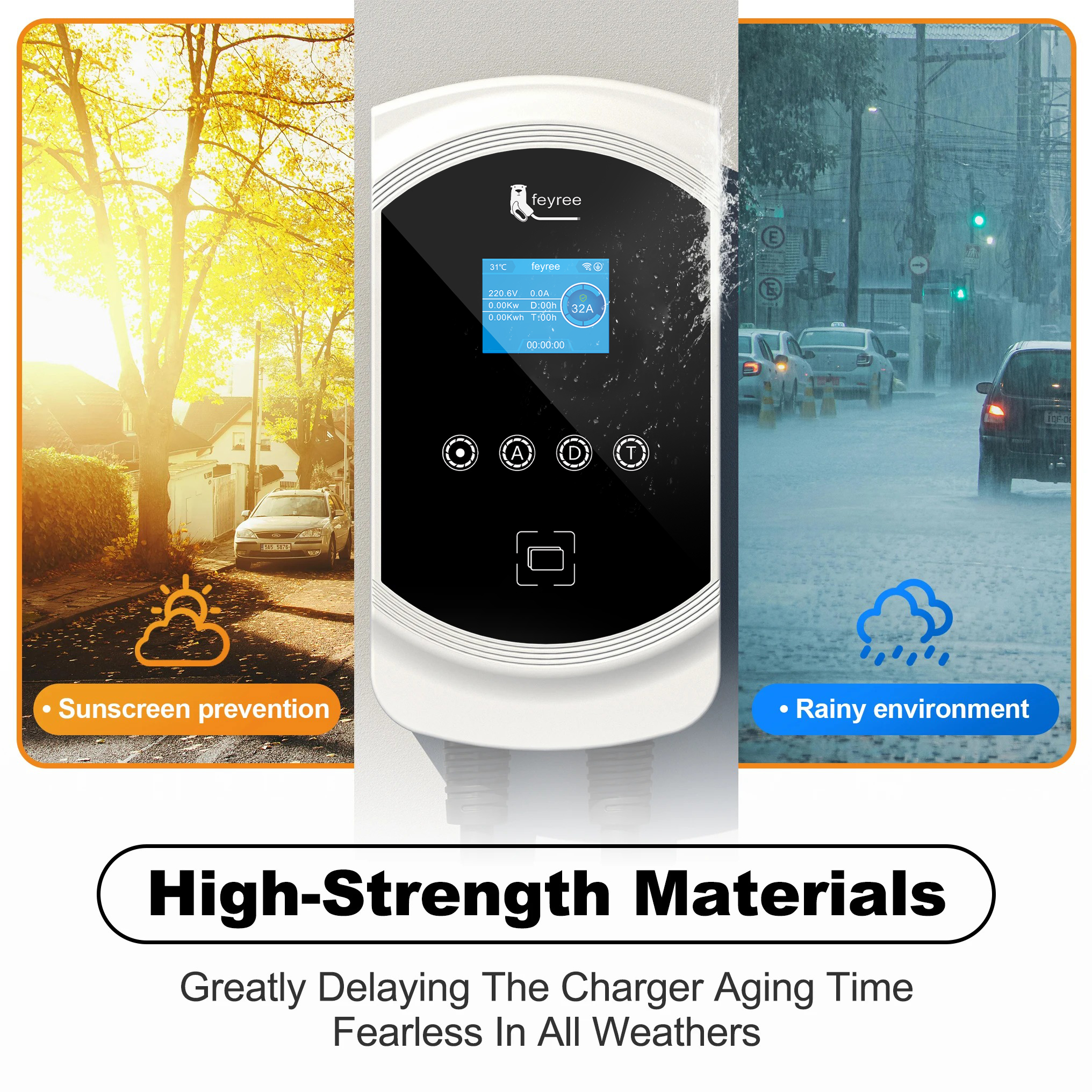

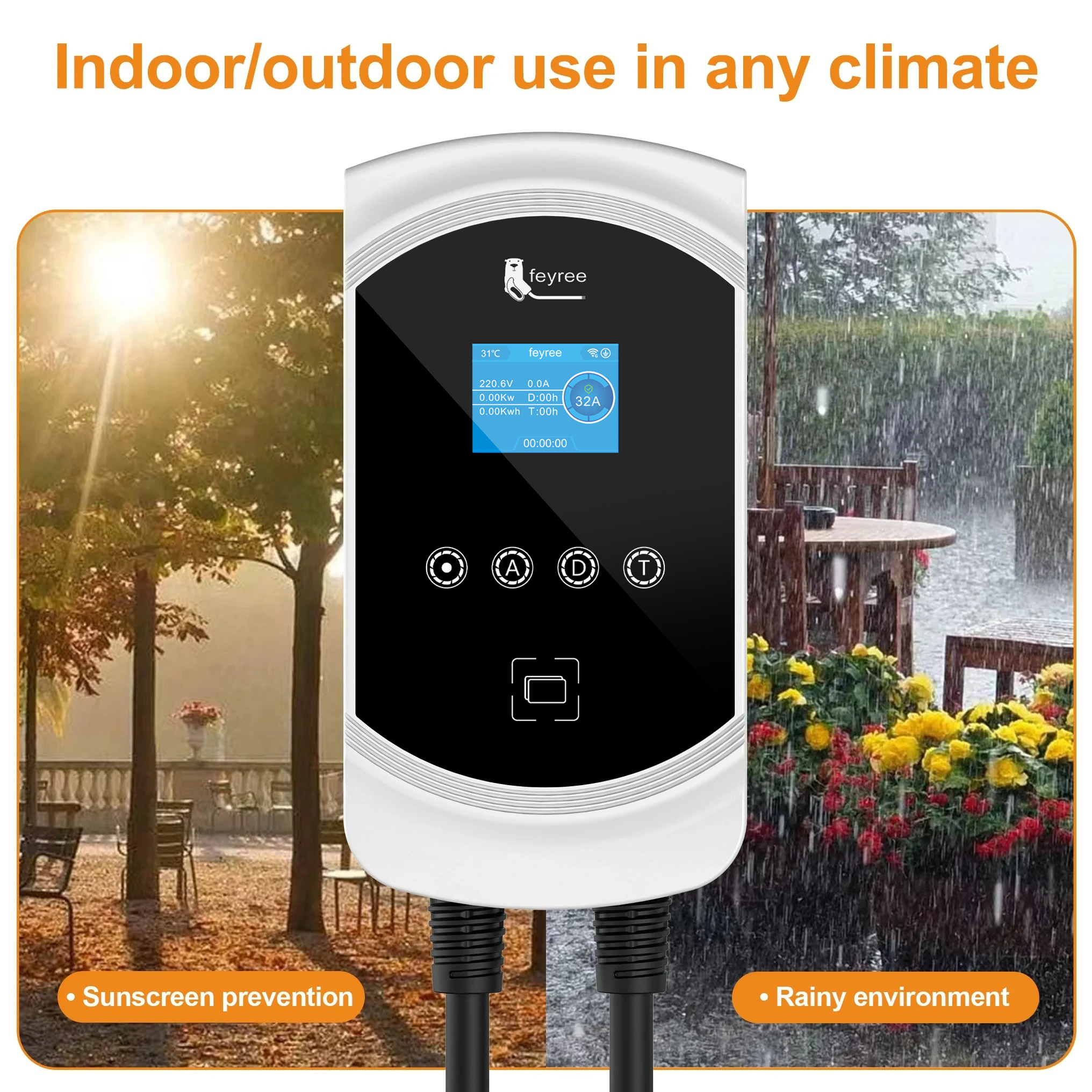

All-Weather Durability: Built for Extreme Conditions
The Feyree EV charger is engineered to withstand the harshest weather conditions. IP66-rated protection ensures reliable operation whether installed outdoors in direct sunlight and rain or indoors in a protected garage environment.
- IP66 Weatherproof Rating: Complete protection against dust, rain, wind, and snow.
- Wide Operating Temperature Range: Functions reliably from -30°C to +55°C.
- Heat & Drop Resistant Connectors: Both ends of the cable feature reinforced, impact-resistant connectors.
- UV-Resistant Housing: High-quality materials resist fading and degradation from sun exposure.
- Corrosion-Resistant Components: Marine-grade materials for coastal and humid environments.

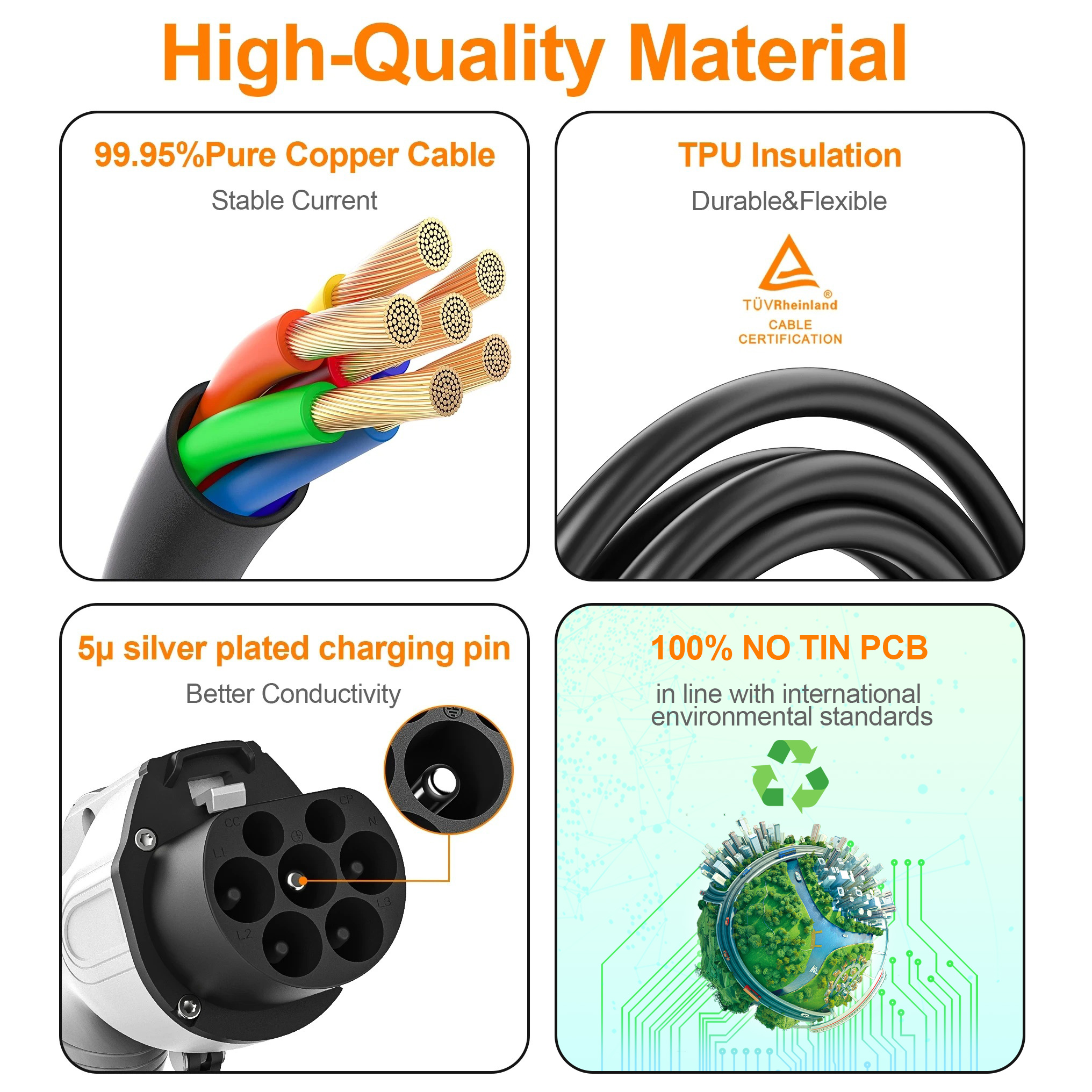

Premium Materials: Superior Conductivity & Safety
Every component is selected for maximum performance, durability, and safety. From pure copper conductors to silver-plated contact pins, the Feyree charger uses only premium materials that ensure efficient power delivery and long service life.
- Pure Copper Conductors: Maximum electrical conductivity with minimal resistive heat generation.
- TPU Cable Insulation: Flexible, cold-resistant thermoplastic polyurethane stays supple down to -30°C.
- Silver-Plated Contact Pins: Corrosion-resistant plating ensures low contact resistance over thousands of cycles.
- Eco-Friendly PCB: RoHS-compliant circuit boards with lead-free solder for environmental safety.
- Fire-Retardant Housing: UL94 V-0 rated materials prevent flame propagation.

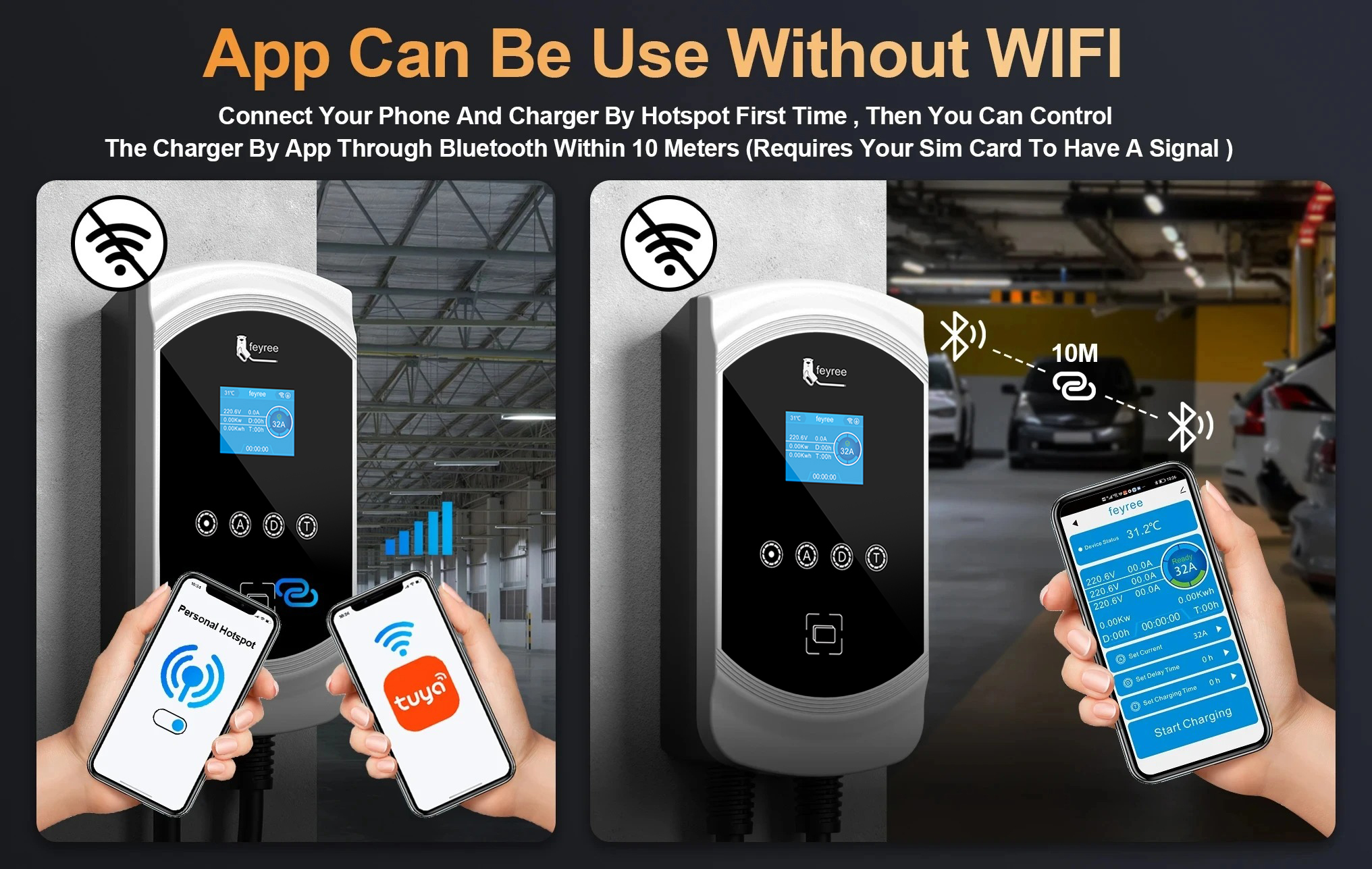

Bluetooth Control: No WiFi Network Required
Even without a WiFi network, you can still control your charger using Bluetooth connectivity. Create a mobile hotspot on your phone and connect directly to the charger for full app functionality anywhere, anytime.
- Direct Bluetooth connection to the charger without requiring a WiFi router.
- Control via mobile phone hotspot when WiFi is unavailable.
- Full access to charging settings and monitoring through Bluetooth.
- Ideal for temporary installations or locations without WiFi infrastructure.
- Seamless switching between WiFi and Bluetooth modes.

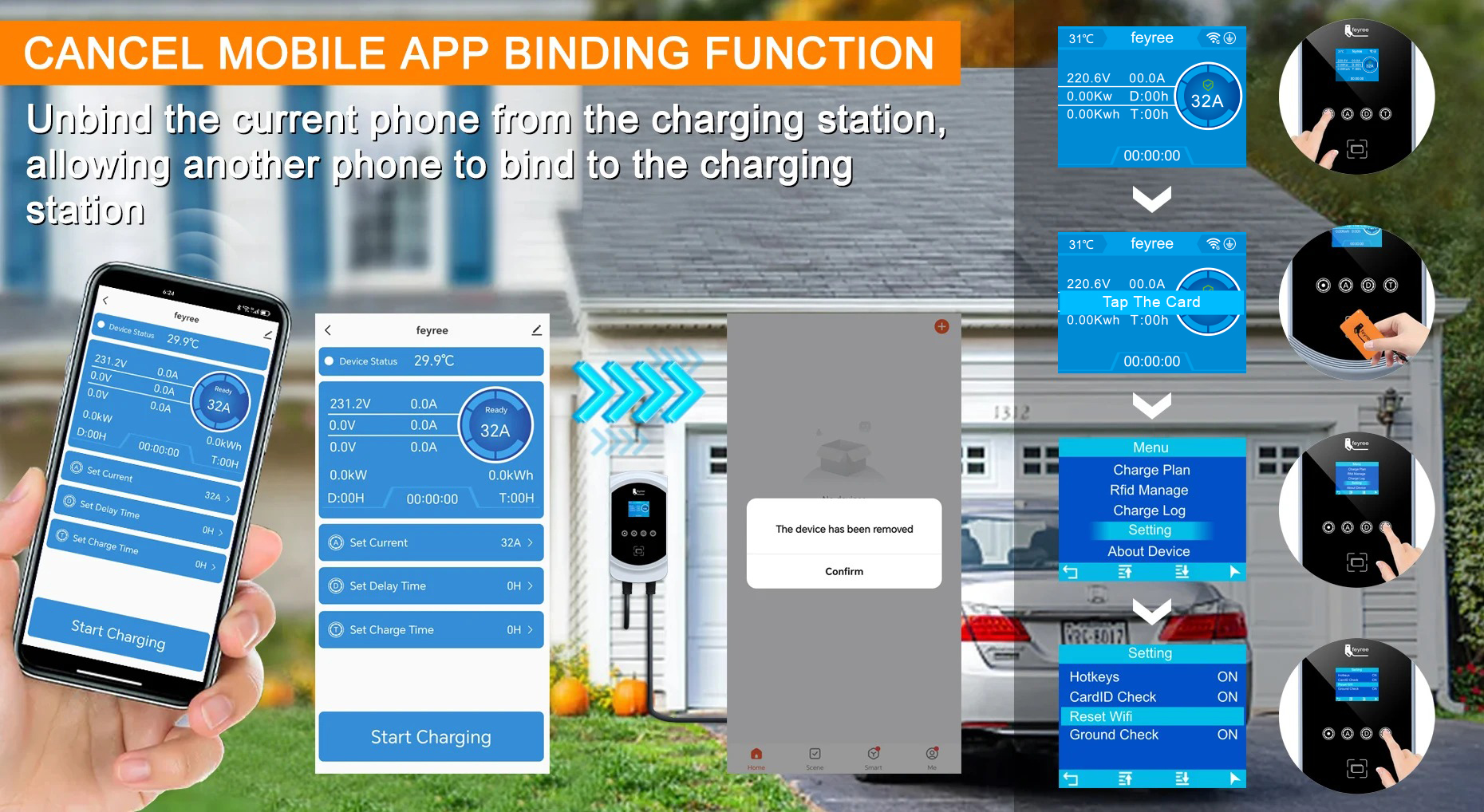

Mobile App Management: Unbind & Security Settings

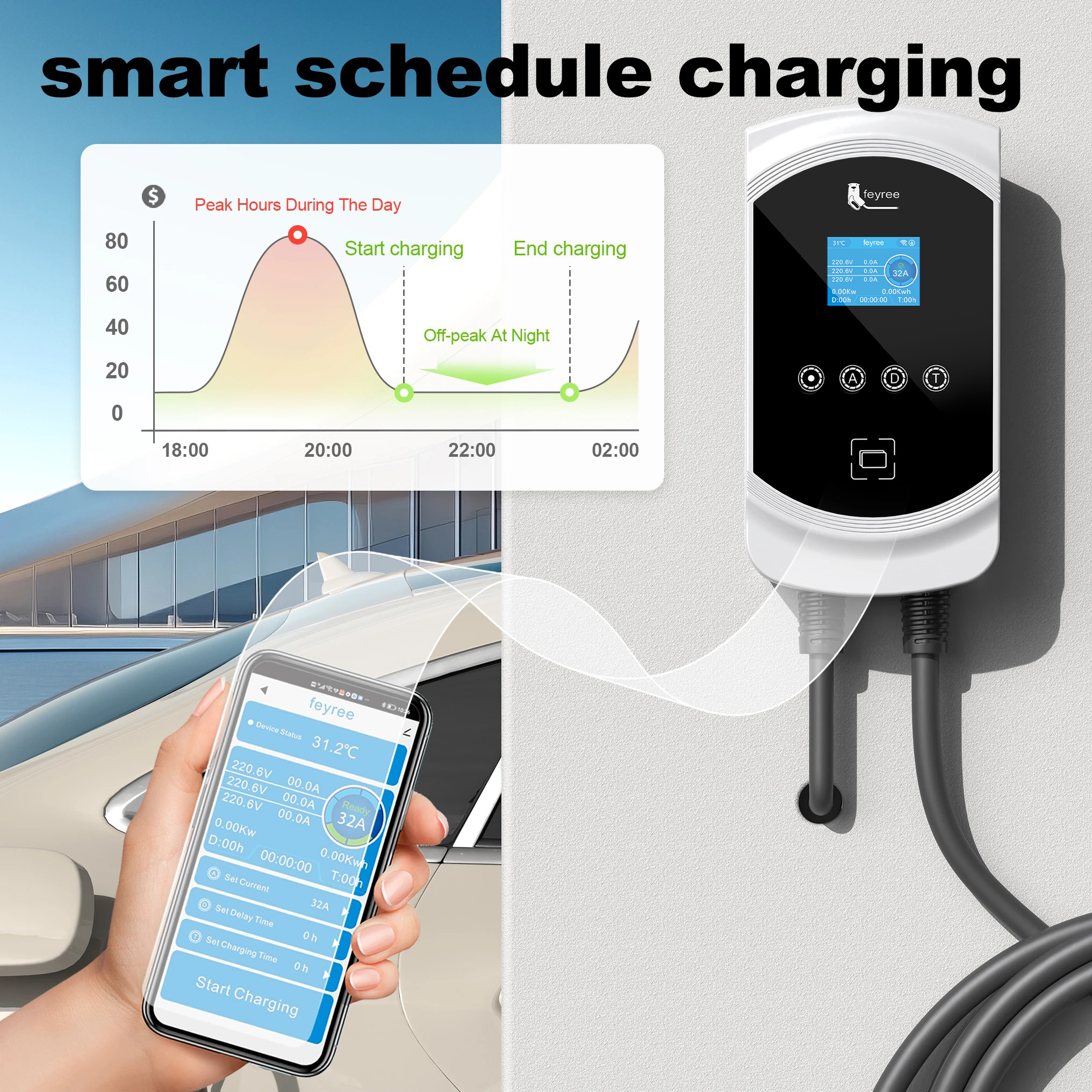

Smart Scheduled Charging: Maximize Savings Automatically
Set up intelligent charging schedules that automatically take advantage of the lowest electricity rates. The app allows you to program weekly charging plans that repeat automatically, ensuring your vehicle charges during the cheapest hours without any daily intervention.
- Create custom charging schedules for different days of the week.
- Visual timeline editor makes scheduling intuitive and easy.
- Automatically charge during off-peak rate periods to save money.
- Recurring schedules run on autopilot once configured.
- Track electricity cost savings directly in the app.

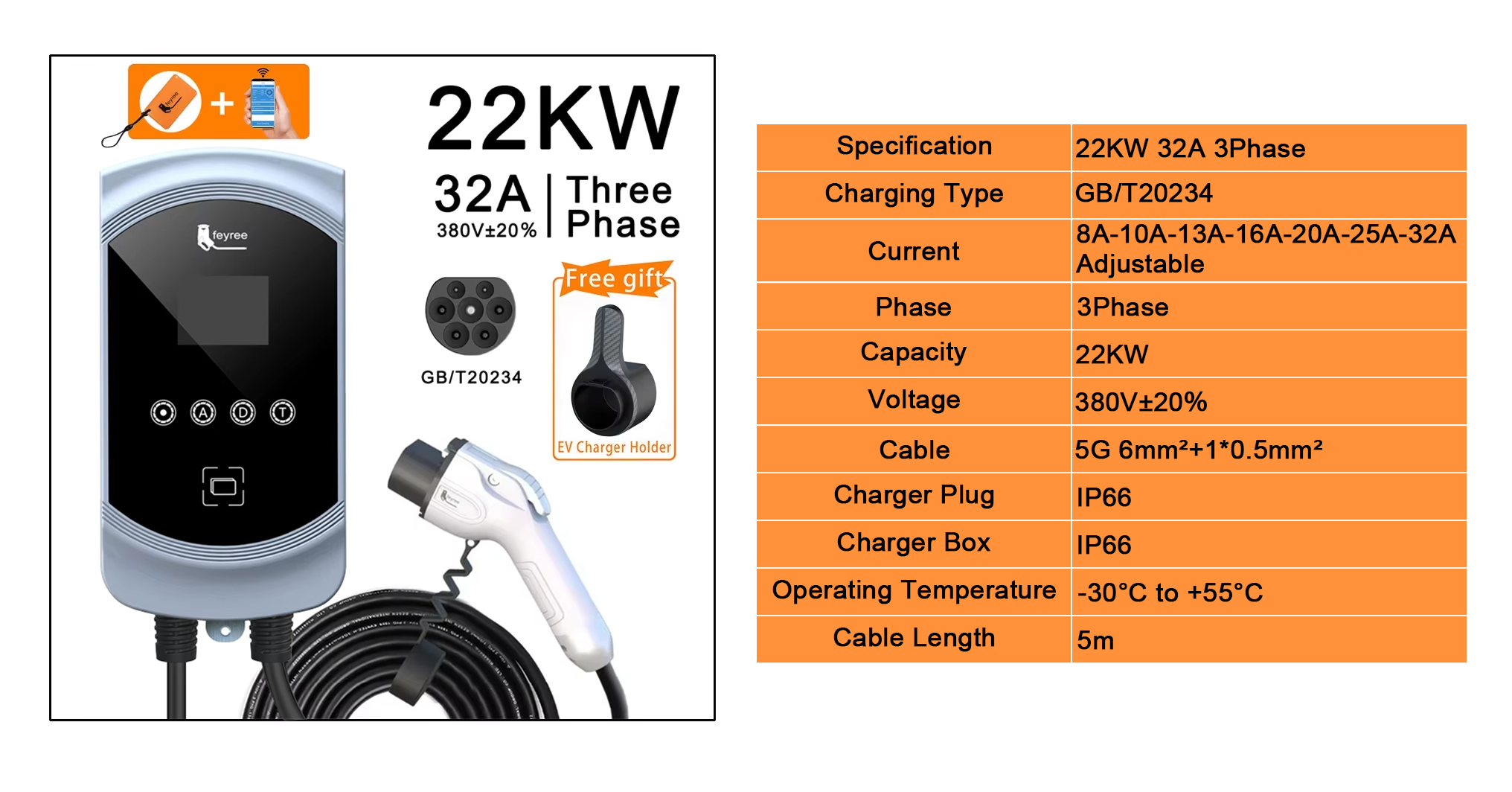

Technical Specifications: Single-Phase & Three-Phase Support

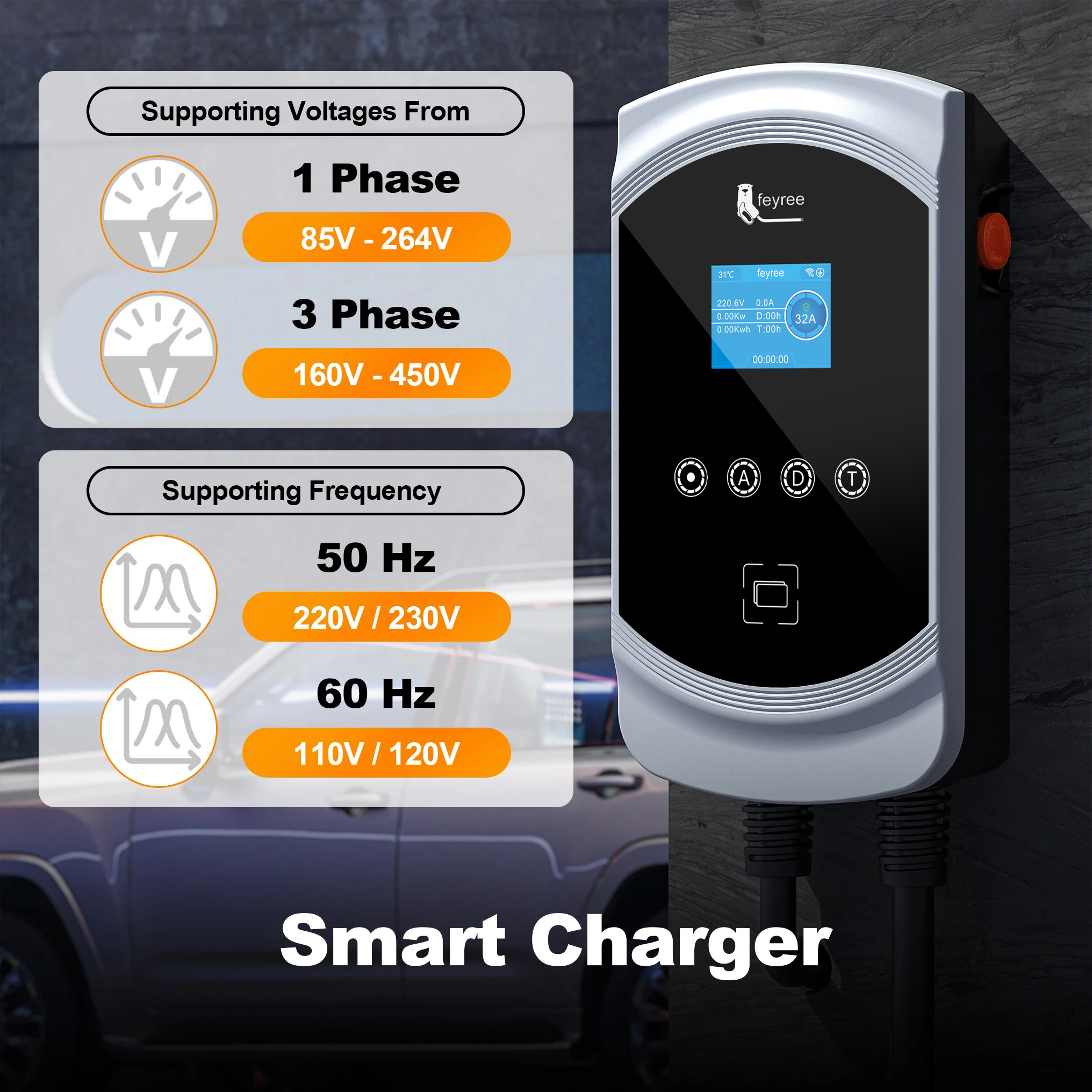

The Feyree EV charger supports both single-phase and three-phase electrical systems, making it compatible with residential and commercial installations worldwide. Flexible input voltage range and frequency support ensure global compatibility.

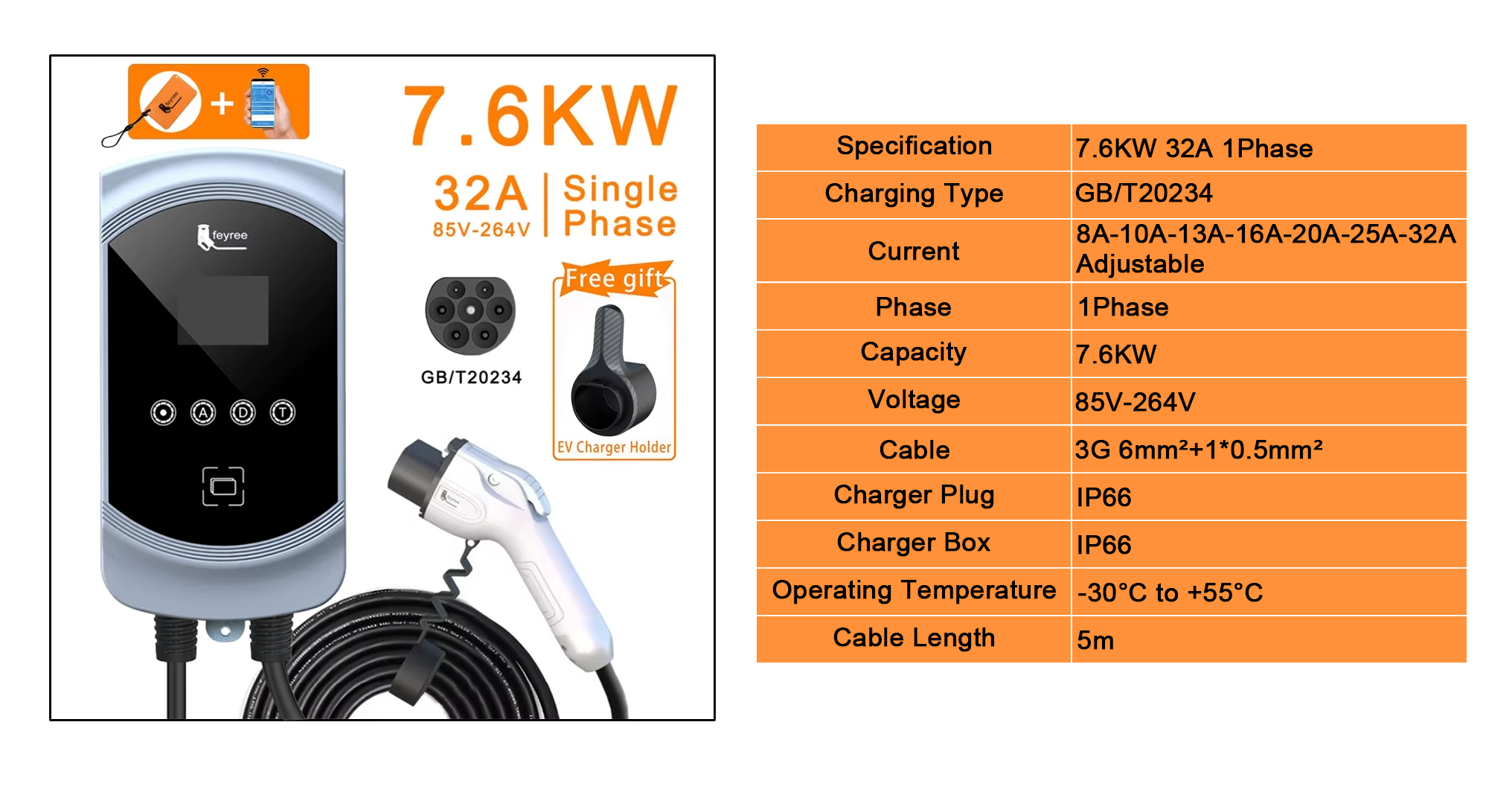

- Single-Phase Models (7.6kW)
- Input: 220-240V AC, 50/60Hz, 32A maximum current

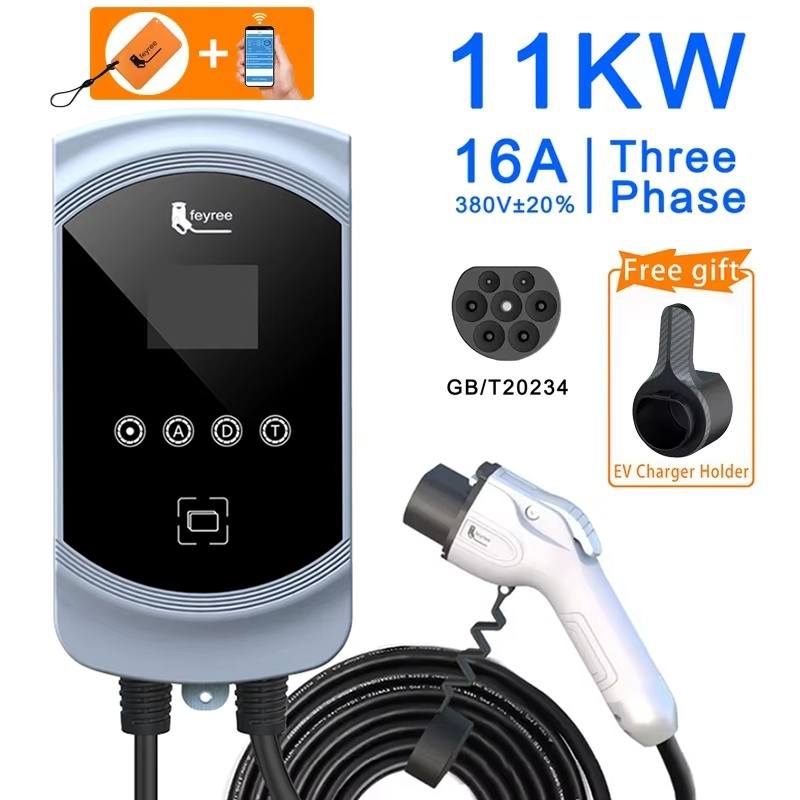

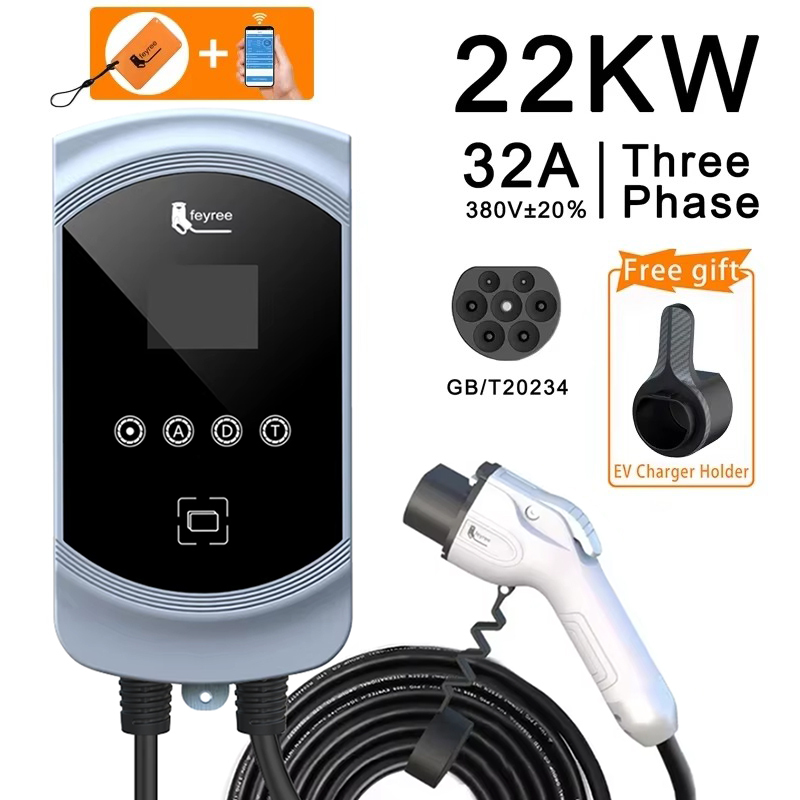

- Three-Phase Models (11kW / 22kW)
- Input: 380-415V AC, 50/60Hz, 16A or 32A maximum current
- Charging Plug Standard
- GB/T 20234 plug type with 5-meter TUV-certified cable
- Protection Rating
- IP66 (dust-tight and water-jet resistant)

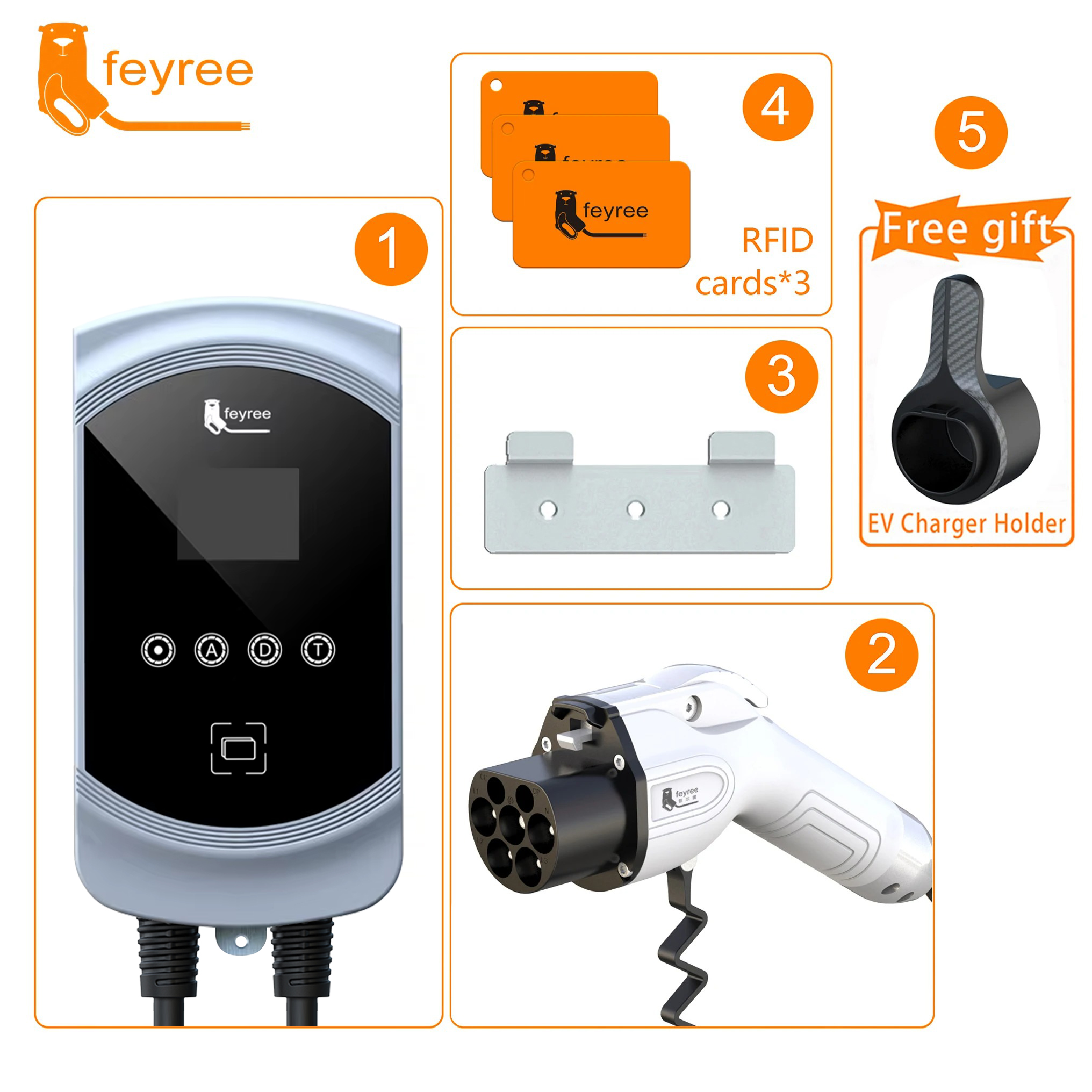

Complete Installation Package: Everything Included
Each Feyree EV charger comes as a complete installation-ready kit with all necessary accessories. No additional purchases required — simply unbox, install, and start charging your electric vehicle.
- Main Charging Unit: Wallbox controller with LCD display and control buttons.
- 5-Meter Charging Cable: GB/T 20234 plug with TUV certification pre-attached.
- Wall-Mount Bracket: Heavy-duty mounting plate with all installation hardware.
- 3× RFID Access Cards: Pre-programmed cards for authorized user access control.
- Free Cable Holder: Wall-mount hook to store the charging plug when not in use.
- User Manual: Multi-language installation and operation guide.

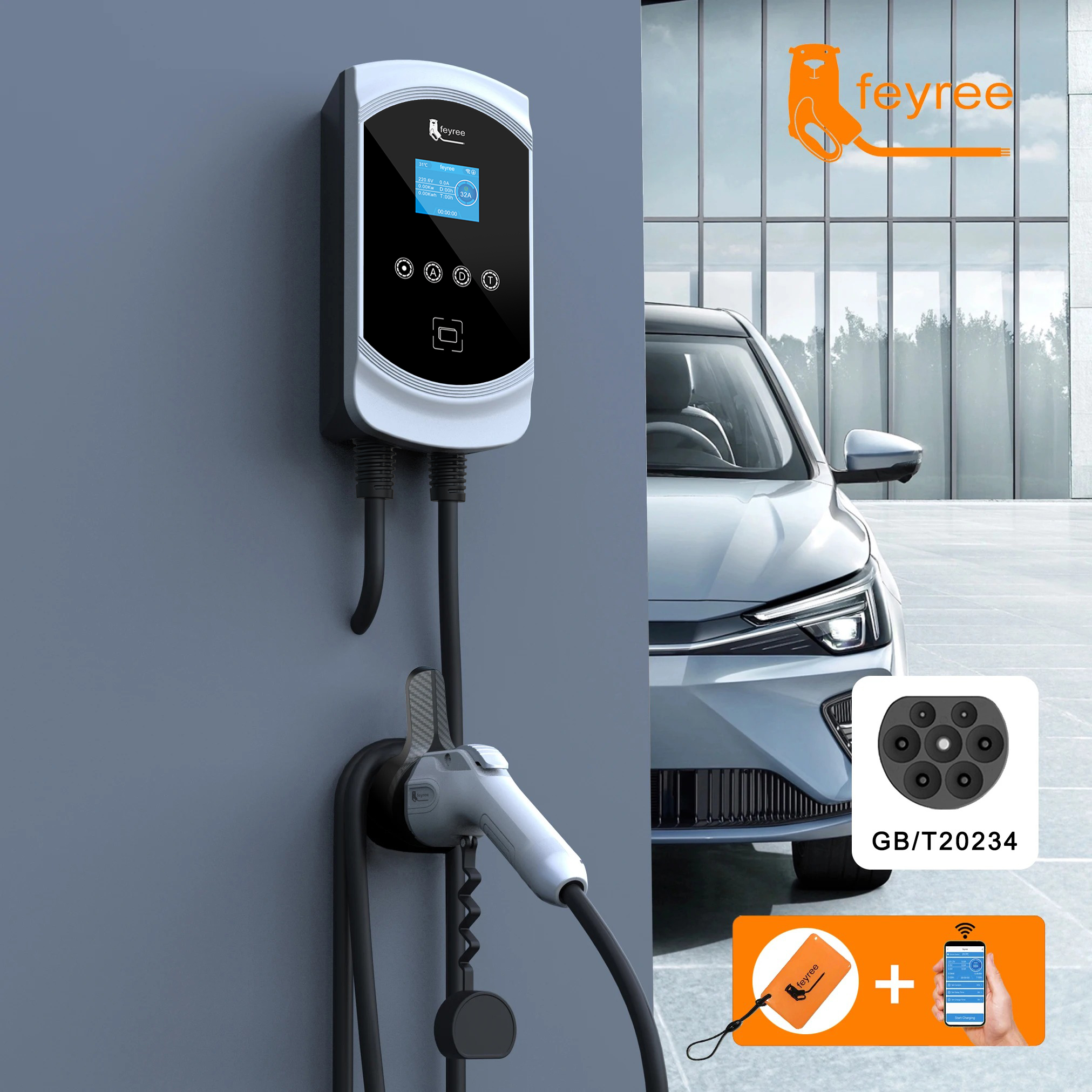

Easy Installation: Suitable for Indoor & Outdoor Use
The Feyree EV charger is designed for straightforward installation by a qualified electrician. Compatible with all standard household electrical installations and suitable for mounting in garages, carports, or outdoor locations thanks to IP66 weatherproof protection.
- Compatible with all household single-phase and three-phase electrical systems.
- Wall-mount design saves floor space and keeps cables organized.
- IP66 weatherproof rating allows outdoor installation without additional protection.
- Suitable for garage, carport, driveway, or parking lot installations.
- Professional installation recommended and required for warranty coverage.
