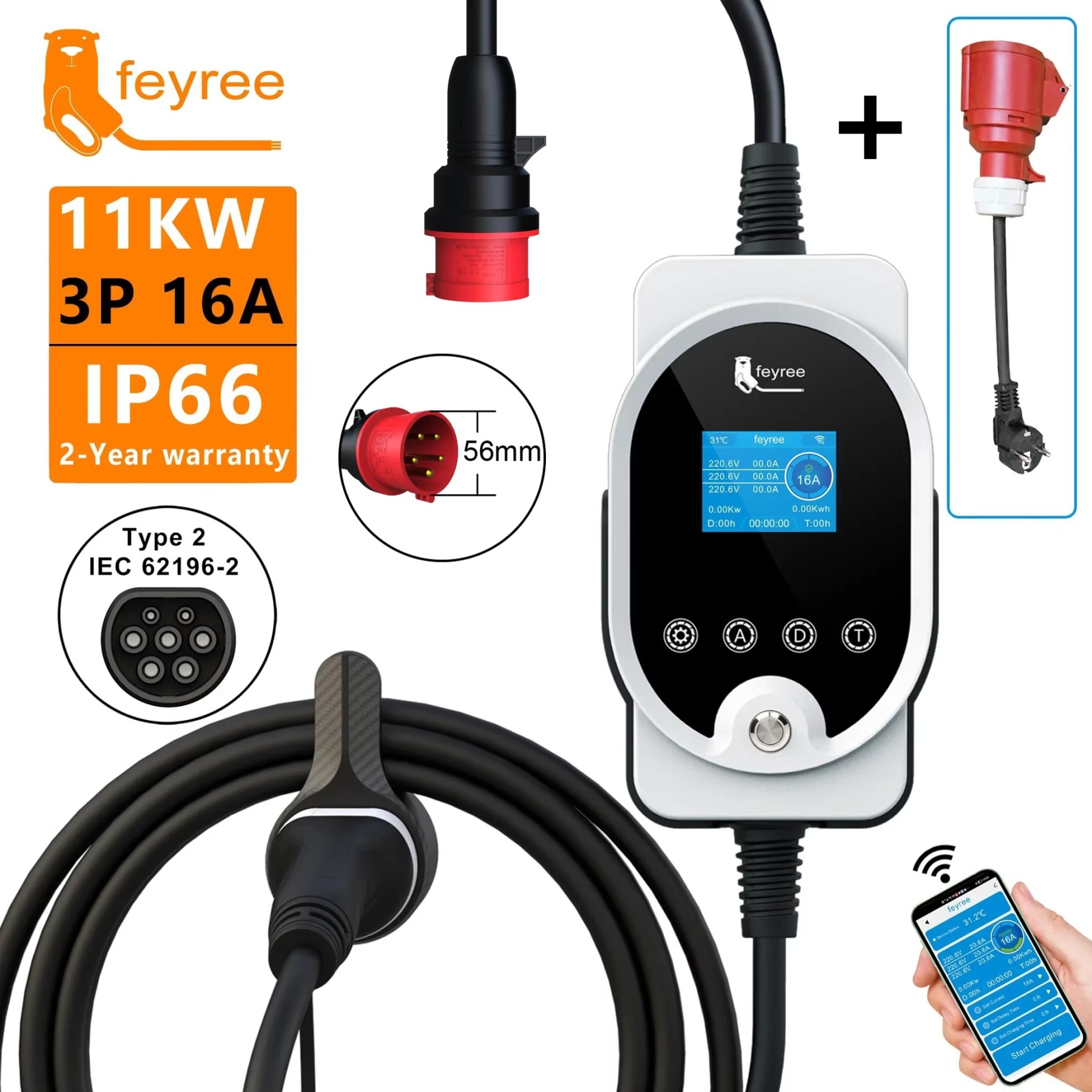

Technical Specifications: 11KW 3-Phase Portable EV Charger
Smart App Control & Real-Time Monitor
This portable EV charging station supports full remote control via the TUYA Smart app (available on Apple App Store & Google Play). Monitor charging status, receive fully-charged notifications, and optimise your energy costs — all from your smartphone.
- Schedule charging during off-peak hours to reduce electricity costs.
- Real-time charging status monitoring and push notifications when fully charged.
- Flexible amperage adjustment: 8A / 10A / 13A / 16A (up to 3.7kW single-phase, 11kW three-phase).
- Connect via Wi-Fi, or via Bluetooth / Hotspot within 10 metres when Wi-Fi is unavailable.
- Weekly charging plan scheduling for a fully automated charging routine.

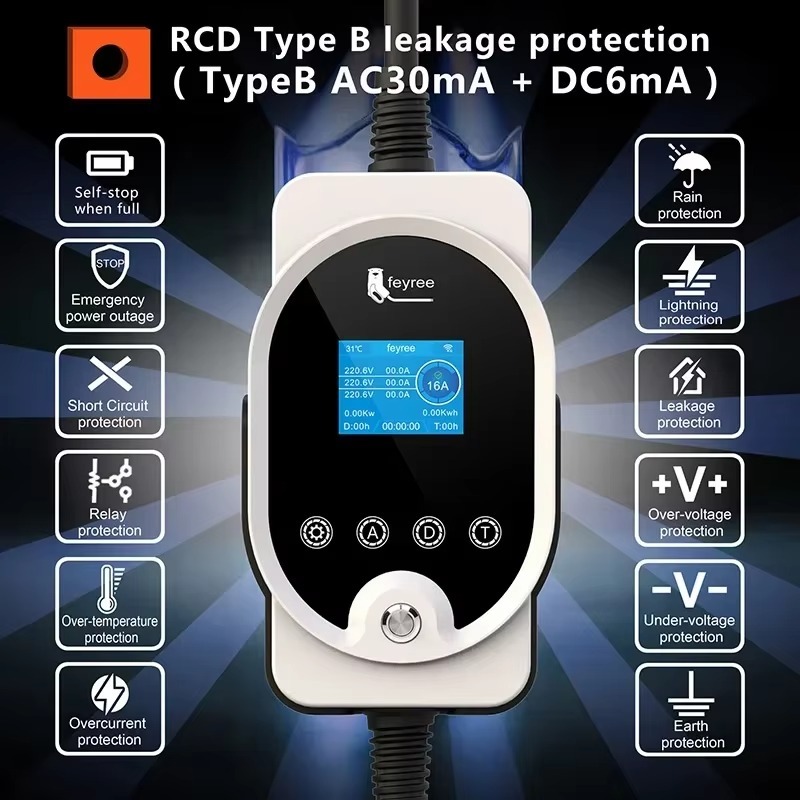

Safety Type B Leakage Protection & CE / FCC Certified
Feyree EV chargers carry CE certification with TÜV-certified cables, and incorporate a full suite of hardware safety protection features for every charging session.
- Type B RCD (AC 30mA + DC 6mA)
- The highest-grade residual current protection — guards against both AC and DC fault currents that standard Type A devices cannot detect.
- Over / Under Voltage Protection
- Automatically disconnects if the supply voltage falls outside safe operating limits.
- Over Current & Overload Protection
- Prevents sustained current draw beyond rated capacity, protecting both charger and vehicle.
- Over Temperature Protection
- Monitors internal temperature and cuts output before any thermal risk can develop.
- Ground Fault Detection
- Instantly trips on any earth continuity fault, eliminating shock risk in all conditions.

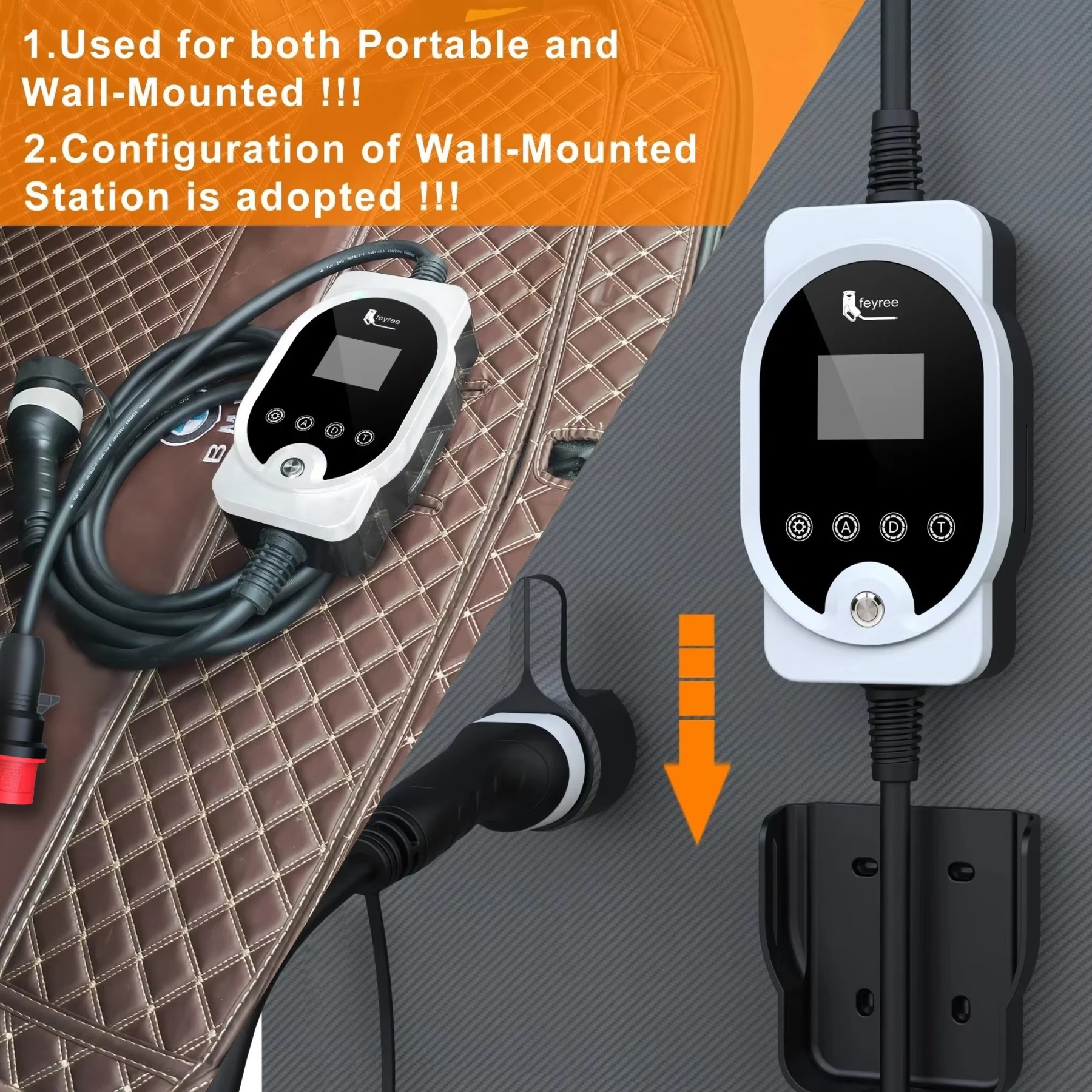

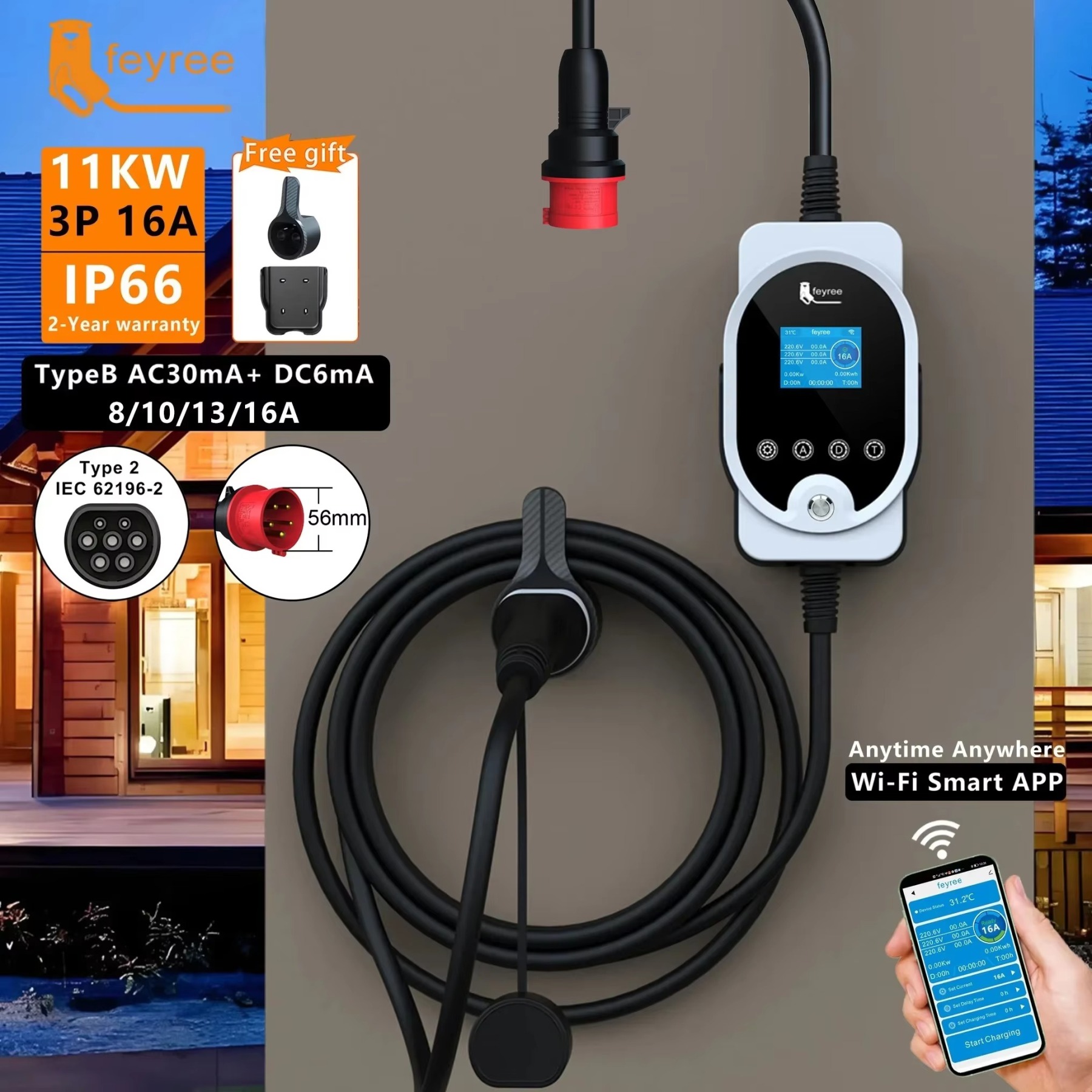

Portable + Wall-Mount: Two Charging Scenarios, One Charger
An innovative back-holder design means you get two products in one — mount it to the wall at home like a permanent wallbox, or slide it into the included carry bag for charging on the go. No compromise needed.
- Wall-mount mode: Attach the back holder to the wall; the charger clicks in and charges like a fixed wallbox.
- Portable mode: Remove the charger and carry it in the bag — ready for any Type 2 socket anywhere.
- One purchase = 1 portable charger + 1 wallbox charger — eliminates the need to buy separate units.
- Internal smart chip provides intelligent charging management and fault detection in both configurations.
Two-Stage Thermal Protection: Reduce First, Cut Off Last
Rather than a hard cut-off at a single threshold, this charger uses a two-stage thermal response to minimise charging interruptions while guaranteeing safety in all ambient conditions.
- Stage 1 — Current Reduction
- Output current is automatically stepped down when internal temperature rises, reducing heat generation while allowing the session to continue.
- Stage 2 — Full Cut-Off
- If temperature continues to rise despite the reduction, charging is fully suspended to protect hardware and eliminate any fire risk.
- Auto-Resume
- Once internal temperature returns to safe levels, the charger restores output automatically — no user action required.
- Operating Range
- Designed and tested to perform reliably from −30°C freezing winters to +55°C peak summer heat.
TUYA Smart App: Weekly Plans & Bluetooth / Hotspot Control
The TUYA Smart app provides a full suite of remote and local control options — set automated weekly charging schedules at home over Wi-Fi, or connect via Bluetooth or personal hotspot when Wi-Fi is unavailable.
- Set weekly recurring charging plans: define start and end times for every day of the week — fully automated, hands-free charging.
- Off-peak scheduling automatically begins charging during cheaper overnight tariff windows.
- Bluetooth control: connect directly to the charger within 10 metres when no Wi-Fi network is present.
- Hotspot control: use your phone's mobile data hotspot for full remote access anywhere with mobile coverage.
- Available on Apple App Store and Google Play — search TUYA Smart.
LCD Panel: Full On-Unit Control Without the App
The built-in LCD screen and touch buttons give you complete, direct control over the charger — adjust current, set a charge timer, and read status in real time, all without needing a smartphone or Wi-Fi connection.
- Clearly displays current phase mode: 1P (single-phase) or 3P (three-phase) — confirmed at a glance before every session.
- Active current setting shown continuously during charging — always know the exact rate being delivered.
- Touch button steps through the 4 current levels (8A / 10A / 13A / 16A) directly on the unit.
- Charge timer: set a 1–15 hour delayed start directly from the panel — no app required.
- Readable in all lighting conditions; compact display layout keeps key data visible at a glance.
Flexible Current Adjustment: 4 Levels, 8A to 16A
Dial in the right charge rate for your electrical installation with a single button press. Four current levels cover every common household and commercial socket scenario.
- 8A: Conservative rate for shared circuits or older wiring installations.
- 10A: Reliable default for most standard sockets — safe for continuous overnight use.
- 13A: Faster charge for correctly rated 13A circuits.
- 16A (3.7kW single-phase / 11kW three-phase): Maximum output on a dedicated 16A circuit breaker.
- Delay timer: set 1–15 hour delayed start directly from the panel to begin charging at the optimal off-peak time.
- Compatible with Type 2 charging ports on all major EV brands.
Smart Button Control: Emergency Stop at Your Fingertips
The control box is equipped with a dedicated Emergency Stop button — a single press immediately halts charging, giving you instant manual override in any unexpected situation without needing the app.
- Large, clearly labelled emergency stop button on the front face of the control box — accessible in seconds.
- Immediately suspends all charging output on press — no delay, no confirmation step required.
- Simple restart procedure: follow the on-screen warm tips to safely resume charging after an emergency stop.
- Ideal for quickly stopping a charge session when unplugging in a hurry or responding to an unexpected event.
- Works independently of app or Wi-Fi connectivity — always available as a physical hardware override.
Premium Materials: Pure Copper, Silver-Plated Pins & Lead-Free PCB
Every component in the charging path is selected for lowest resistance, highest conductivity, and longest service life — from the conductor core to the connector tip.
- 99.95% pure copper conductor: Minimises resistive heat generation inside the cable, far above standard cable purity.
- Silver-plated connector pins: Corrosion-resistant and low-resistance after thousands of mating cycles.
- TÜV-certified TPU outer jacket: Flexible in sub-zero temperatures, UV-resistant, rated for continuous outdoor use.
- Lead-free PCB: RoHS-compliant internal electronics — safe for users and the environment.
- Mechanical life rated for over 10,000 plug/unplug cycles — built for a decade of daily use.

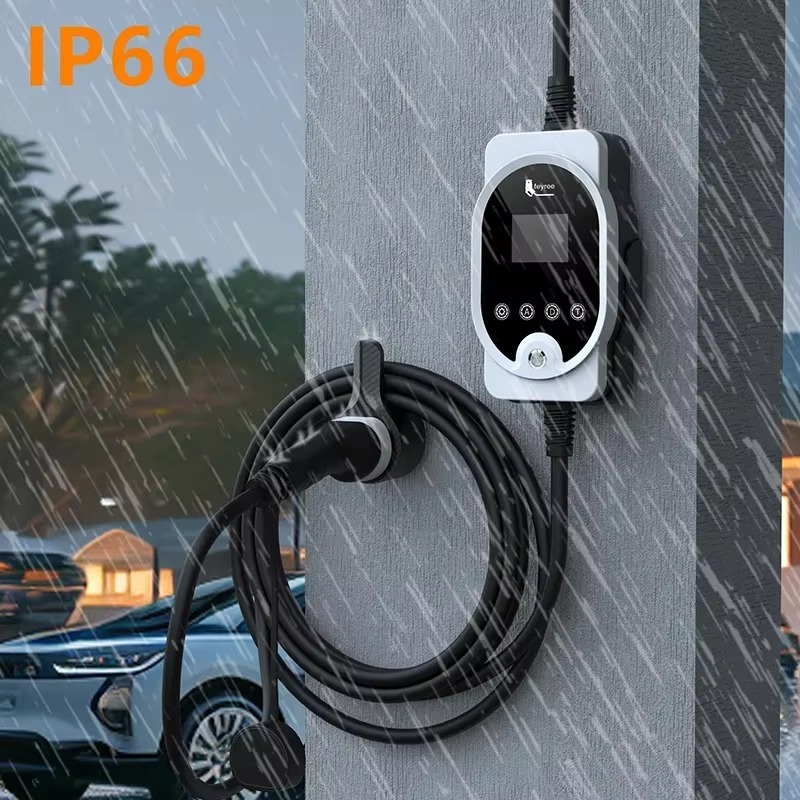

All-Weather Outdoor Performance & Dual Installation
Whether permanently wall-mounted outside or used as a portable charger on the go, this unit is engineered to perform reliably in real-world outdoor conditions — rain, heat, cold, or direct sunlight.
- IP-rated enclosure and connectors fully sealed against rain, dust, and water jets — verified under real rainfall, not just lab spray tests.
- Operates in heavy rainfall without any reduction in performance or safety.
- Wall-mount bracket installs quickly with standard fixings — no specialist tools or electrician required for the bracket itself.
- Portable carry bag included: remove the charger from the bracket and take it anywhere a Type 2 socket is available.
- 2-year manufacturer warranty covers both wall-mount and portable configurations.
